Plasson Elbow 90
Useful Information
Technical Specification
- Material: PE100 Polyethylene
- Pressure Rating: PN16 (16 bar)
- Terminal Pins: 4mm electrofusion terminals (standard size)
- Application: Joins two MDPE pipes of the same diameter at a 90° angle
- Use: Water systems only (cold water)
- Standards Compliance: BS EN 1555, BS EN 12201, WIS 4-32-14, WIS 4-32-15
Description

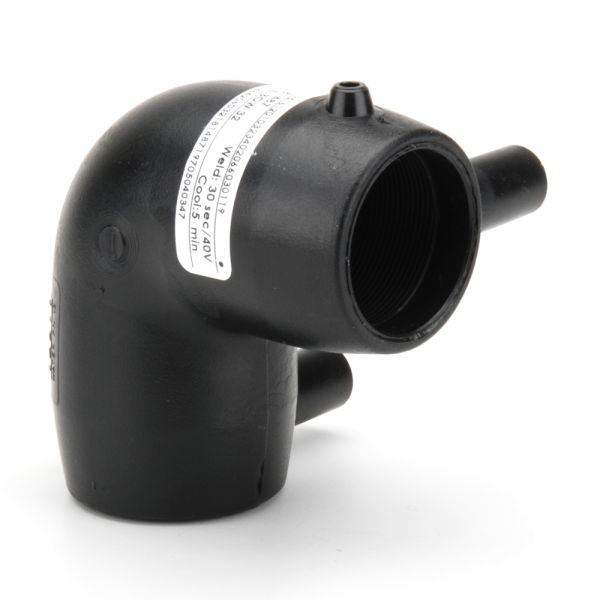

The Plasson Electrofusion Elbow 90° is designed to create a right-angle connection between two MDPE pipes of the same diameter. Manufactured from durable PE100 polyethylene and PN16 pressure rated, this fitting ensures a strong, permanent, and leak-free joint for potable water systems.
Supplied with 4mm electrofusion terminals, it is compatible with standard electrofusion control boxes and is WRAS approved for use in drinking water applications. This 90° elbow is ideal for pipeline layout changes where a sharp directional turn is required without compromising flow performance or joint integrity.
Key Features & Benefits
- Precise 90° Bend: Ideal for changing direction in confined spaces or structured layouts
- Robust Construction: Made from PE100 for durability in demanding environments
- WRAS Approved: Safe for use in potable water systems
- Leak-Free Seal: Permanent electrofusion joint ensures system integrity
- Water Use Only: Not intended for gas or chemical applications
| SKU | Size (mm) |
| 370653 | 20 |
| 370654 | 25 |
| 370655 | 32 |
| 370656 | 40 |
| 370657 | 50 |
| 370658 | 63 |
| 370659 | 75 |
| 370660 | 90 |
| 370661 | 110 |
| 370662 | 125 |
| 370663 | 140 |
| 370664 | 160 |
| 370665 | 180 |
| 370666 | 200 |
| 370667 | 225 |
| 370668 | 250 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
