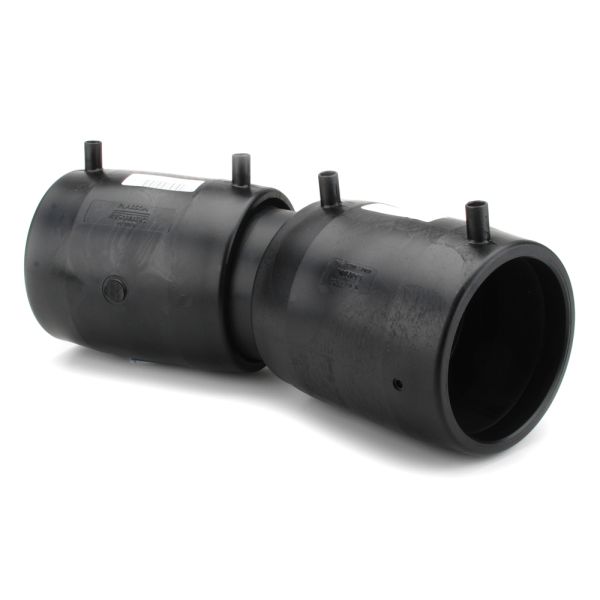

Plasson Adjustable Elbow

• Material: PE100 Polyethylene
• Pressure Rating: PN16 (16 bar)
• Terminal Pins: 4mm electrofusion terminals (standard)
• Application: Joins two MDPE pipes of the same diameter at a variable angle (up to 24°)
• Use: Cold water systems only
• WRAS Approved: Yes – suitable for potable water
• Standards Compliance: BS EN 1555, BS EN 12201, WIS 4-32-14, WIS 4-32-15

The Plasson Adjustable Electrofusion Elbow is a versatile fitting designed to join two equal-diameter MDPE pipes at a variable angle of up to 24°. This makes it ideal for installations where slight misalignments or direction changes are required but a fixed-angle elbow (e.g. 22.5°, 45°, 90°) would not suit.

Once aligned to the desired angle, the fitting is welded via electrofusion, locking the position in place. Manufactured from PE100 and rated to PN16, this elbow is also WRAS approved for use in potable water systems and features standard 4mm terminal pins for compatibility with all common electrofusion control units.

• Adjustable Angle: Allows up to 24° of movement to accommodate site-specific routing
• Fixes in Place on Fusion: Final angle is set when electrofusion process is completed
• PE100 Construction: Offers strength, longevity, and high environmental resistance
• Leak-Free Joint: Creates a strong, permanent fusion weld
• Water Use Only: Not suitable for gas or chemical pipelines
