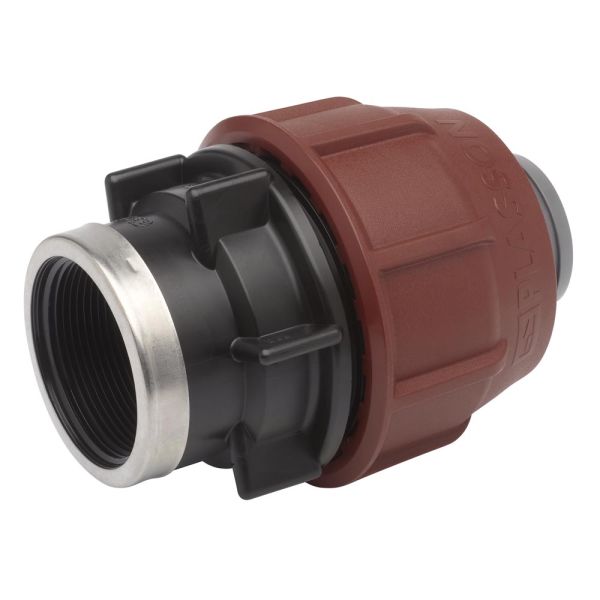

Plasson Barrier Female Adaptor
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: Reinforced Polyethylene
- Manufacturer: Plasson
- For Cold Water Use
- Certification/Standards: Kiwa Reg4, BS8588, BS6970
| Product Code | Length (mm) | Width (mm) | Height (mm) | Male Thread |
| 408159 | 95 | 85 | 54 | 3/4 |
| 408160 | 95 | 85 | 54 | 1 |
| 408161 | 95 | 82 | 64 | 3/4 |
| 408162 | 103 | 88 | 64 | 1 |
| 408163 | 160 | 149 | 113 | 1 1/2 |
| 408164 | 241 | 57 | 54 | 2 |
| Size | Min OD (mm) | Max OD (mm) |
| 25 | 26.2 | 27.78 |
| 32 | 33.3 | 34.78 |
| 63 | 64.3 | 67.75 |
Useful Info:
No pipe end preparation required.
Suitable for the conveyance of drinking water.
Easy to install in all weather conditions without the need for specialist tools.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
