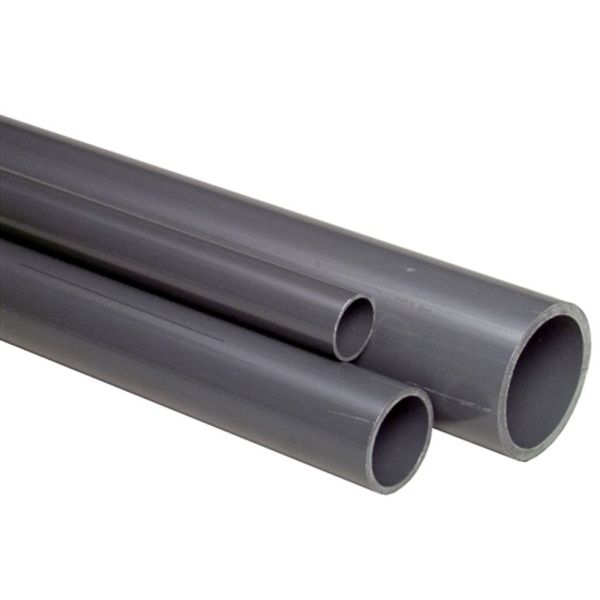

Pipe PVC-U grey SDR 13.6
Useful Information
Containment pipe is made from PVC-U, Polyvinylchloride unplasticised DIN 8061.
The colour of our containment pipe is RAL 7011 - dark-grey.
Our containment pipe is supplied with plain ends.
The pipe is supplied in 5m lengths.
| Pressure Rating | 16 bar |
| Sizes | 20mm - 160mm |
| Product Code | Diameter = d (mm) | Length (m) | Weight (kg/m) | e (mm) | di (mm) |
| 392272 | 20 | 5 | 0.139 | 1.5 | 17.0 |
| 392273 | 25 | 5 | 0.215 | 1.9 | 21.2 |
| 392274 | 32 | 5 | 0.347 | 2.4 | 27.2 |
| 392275 | 40 | 5 | 0.533 | 3.0 | 34.0 |
| 392276 | 50 | 5 | 0.821 | 3.7 | 42.6 |
| 392277 | 63 | 5 | 1.310 | 4.7 | 53.6 |
| 392278 | 75 | 5 | 1.850 | 5.6 | 63.8 |
| 392279 | 90 | 5 | 2.640 | 6.7 | 76.6 |
| 392280 | 110 | 5 | 3.910 | 8.1 | 93.8 |
| 392281 | 125 | 5 | 5.040 | 9.2 | 106.6 |
| 392282 | 140 | 5 | 6.030 | 10.3 | 119.4 |
| 392283 | 160 | 5 | 8.230 | 11.8 | 136.4 |
