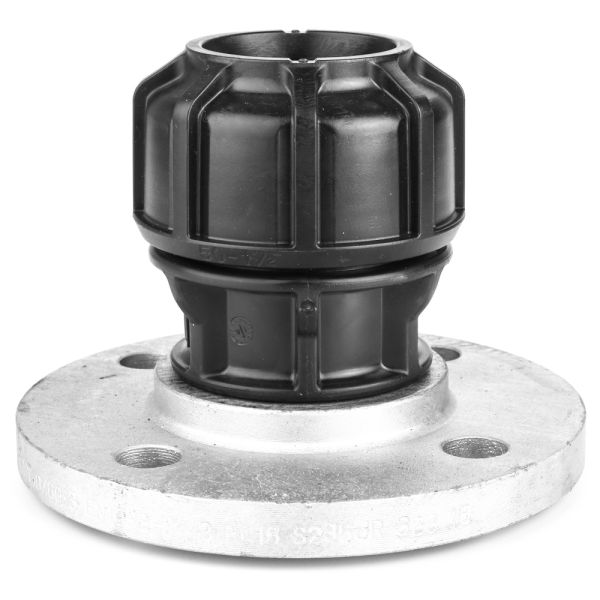

Philmac Flange Adaptor
Useful Information
Technical Specification
- Product Type: Flange Adaptor – Compression x Flange Connection
- Body Material: Polypropylene
- Nut Material: Acetal
- Split Collet Material: Acetal
- Seal Material: Nitrile rubber
- Approvals & Standards: WRAS approved, AS/NZS 419, AS/NZS 4020, BS 6920, ISO 14236
- Maximum Working Pressure: Up to 63mm (2"): 16 bar, Above 63mm: 10 bar
- Pipe Compatibility: MDPE and HDPE
- Application: For connecting MDPE pipe to flanged valves, fittings, or equipment
Description
The Philmac flange adaptor is designed to enable a secure and pressure-rated connection between MDPE pipe and flanged components such as valves or equipment. Combining a reliable compression joint with a standard flange interface, it simplifies the transition between piping and mechanical systems. The fitting is pre-assembled for ease of use and constructed from durable materials to ensure a long service life in both above- and below-ground applications.
Key Features & Benefits
- Pipe-to-Flange Connection: Ideal for joining MDPE pipe to flanged valves or systems
- Tool-Free Installation: Pre-assembled design enables quick and easy setup
- Leak-Proof Seal: Nitrile rubber seal ensures dependable, watertight performance
- Rugged Construction: Made from corrosion-resistant polypropylene and acetal
- Standards Compliant: Certified to major international and UK water industry standards
| SKU | Philmac Code | Size |
| 355239 | 98776600 | 50mm x 2" |
| 355240 | 98777600 | 63mm x 2" |
| 355228 | 97879800 | 90mm x 3" |
| 355227 | 97870900 | 110mm x 4" |
