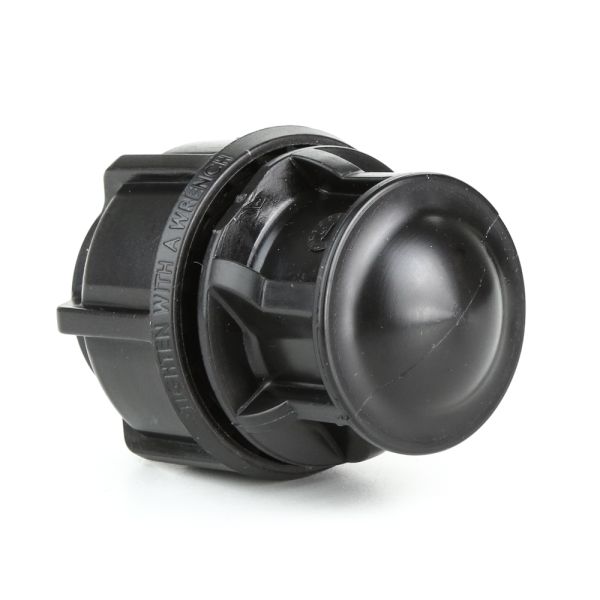

End Cap

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Manufactured by Philmac
  • Materials: Body (polypropylene), Nut (acetal), Split Collet (acetal), Seal (nitrile rubber)
  • WRAS approved
  • Conforms to AS/NZS 419, AS/NZS 4020, BS 6920, ISO 14236
  • Max. Pressure 16 bar up to 63mm / 2" (Above 63mm = 10 bar)
  • Suitable for MDPE and HDPE

Compression Fitting - End Cap.jpg

Product Code S (mm) D (mm) L (mm)
355248 19 47 58
355256 23 55 68
355257 24 67 78
355258 31 81 92
355260 33 94 105
355262 41 110 124



Useful Info:

No special tools required as fittings are pre-assembled and ready for use.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
355248PM End Cap 20mm £5.80 40% £3.48
355256PM End Cap 25mm £7.79 40% £4.67
355257PM End Cap 32mm £10.39 40% £6.23
355258PM End Cap 40mm £20.53 40% £12.32
355260PM End Cap 50mm £25.12 40% £15.07
355262PM End Cap 63mm £35.57 40% £21.34
355203PM End Cap 75mm £50.05 40% £30.03
355204PM End Cap 90mm £68.08 40% £40.85
355199PM End Cap 110mm £80.10 40% £48.06
