Joiner

Joiner

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Manufactured by Philmac
  • Materials: Body (polypropylene), Nut (acetal), Split Collet (acetal), Seal (nitrile rubber)
  • WRAS approved
  • Conforms to AS/NZS 419, AS/NZS 4020, BS 6920, ISO 14236
  • Max. Pressure 16 bar up to 63mm / 2" (Above 63mm = 10 bar)
  • Suitable for MDPE and HDPE

Technical Info:

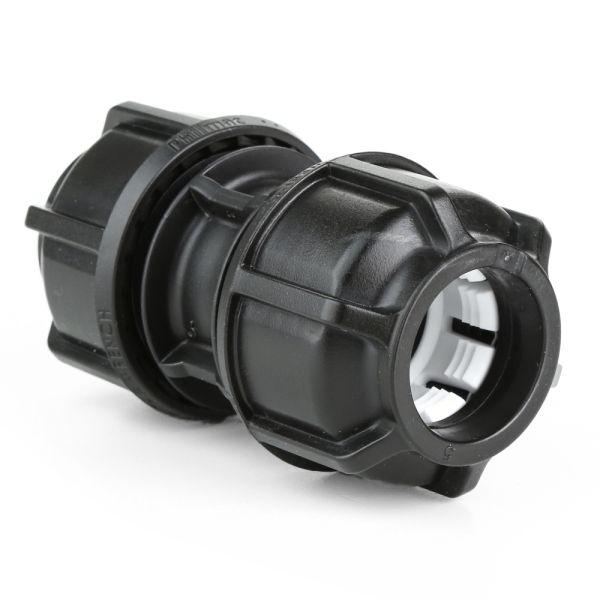

Philmac Joiner Fitting

Product Code Size (mm) Size (inch) S (mm) D (mm) L (mm) Weight (kg)
355263 20 ½ 10 47 90 0.08
355266 25 ¾ 11 55 97 0.12
355270 32 1 14 67 118 0.2
355274 40 18 81 136 0.33
355279 50 24 94 161 0.52
355284 63 2 29 110 182 0.76



Philmac Joiner Fitting

Product Code Size (mm) S (mm) D (mm) L (mm) Weight (kg)
355208 75 43 134 295 1.24
355210 90 50 157 350 2.06
355205 110 62 190 430 3.61



Useful Info:

This Philmac joiner compression fitting is used to connect two lengths of MDPE pipe together.

The pipes to be joined must be of the same diameter.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PM Joiner 20mm
Code
355263
Product Name
PM Joiner 20mm
List Price
£4.80
You Pay
£2.88
You Save
40%
Qty
PM Joiner 25mm
Code
355266
Product Name
PM Joiner 25mm
List Price
£5.05
You Pay
£3.03
You Save
40%
Qty
PM Joiner 32mm
Code
355270
Product Name
PM Joiner 32mm
List Price
£12.00
You Pay
£7.20
You Save
40%
Qty
PM Joiner 40mm
Code
355274
Product Name
PM Joiner 40mm
List Price
£26.43
You Pay
£15.86
You Save
40%
Qty
PM Joiner 50mm
Code
355279
Product Name
PM Joiner 50mm
List Price
£27.61
You Pay
£16.57
You Save
40%
Qty
PM Joiner 63mm
Code
355284
Product Name
PM Joiner 63mm
List Price
£41.55
You Pay
£24.93
You Save
40%
Qty
PM Joiner 75mm
Code
355208
Product Name
PM Joiner 75mm
List Price
£66.26
You Pay
£39.76
You Save
40%
Qty
PM Joiner 90mm
Code
355210
Product Name
PM Joiner 90mm
List Price
£81.19
You Pay
£48.71
You Save
40%
Qty
PM Joiner 110mm
Code
355205
Product Name
PM Joiner 110mm
List Price
£130.66
You Pay
£78.40
You Save
40%
Qty
9 products
