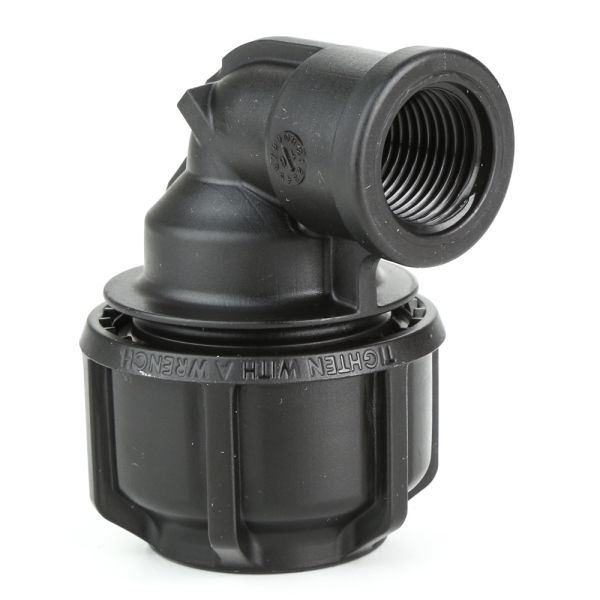

Female Elbow

Female Elbow

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Manufactured by Philmac
  • Materials: Body (polypropylene), Nut (acetal), Split Collet (acetal), Seal (nitrile rubber)
  • WRAS approved
  • Conforms to AS/NZS 419, AS/NZS 4020, BS 6920, ISO 14236
  • Max. Pressure 16 bar up to 63mm / 2" (Above 63mm = 10 bar)
  • Suitable for MDPE and HDPE

Compression Fitting - Elbow Female.jpg

Product Code S (mm) D (mm) H (mm) L (mm) T (mm)
355373 10 47 73 59 22.8
355374 10 47 73 59 24.1
355375 11 55 88 67 22.8
355376 11 55 88 67 24.1
355377 11 55 88 67 27.4
355378 14 67 105 80 27.4
355379 14 67 105 81 30.2
355380 18 81 126 91 30.2
355381 18 81 126 91 30.2
355382 24 94 142 101 30.2
355383 24 94 142 106 34.5
355384 29 110 160 113 34.5



Useful Info:

No special tools required as fittings are pre-assembled and ready for use.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PM Female Elbow 20mm x Thread 1/2"
Code
355373
Product Name
PM Female Elbow 20mm x Thread 1/2"
List Price
£5.60
You Pay
£3.36
You Save
40%
Qty
PM Female Elbow 20mm x Thread 3/4"
Code
355374
Product Name
PM Female Elbow 20mm x Thread 3/4"
List Price
£7.08
You Pay
£4.25
You Save
40%
Qty
PM Female Elbow 25mm x Thread 1/2"
Code
355375
Product Name
PM Female Elbow 25mm x Thread 1/2"
List Price
£7.84
You Pay
£4.70
You Save
40%
Qty
PM Female Elbow 25mm x Thread 3/4"
Code
355376
Product Name
PM Female Elbow 25mm x Thread 3/4"
List Price
£7.63
You Pay
£4.58
You Save
40%
Qty
PM Female Elbow 25mm x Thread 1"
Code
355377
Product Name
PM Female Elbow 25mm x Thread 1"
List Price
£11.38
You Pay
£6.83
You Save
40%
Qty
PM Female Elbow 32mm x Thread 1"
Code
355378
Product Name
PM Female Elbow 32mm x Thread 1"
List Price
£11.43
You Pay
£6.86
You Save
40%
Qty
PM Female Elbow 32mm x Thread 1 1/4"
Code
355379
Product Name
PM Female Elbow 32mm x Thread 1 1/4"
List Price
£25.22
You Pay
£15.13
You Save
40%
Qty
PM Female Elbow 40mm x Thread 1 1/4"
Code
355380
Product Name
PM Female Elbow 40mm x Thread 1 1/4"
List Price
£25.09
You Pay
£15.05
You Save
40%
Qty
PM Female Elbow 40mm x Thread 1 1/2"
Code
355381
Product Name
PM Female Elbow 40mm x Thread 1 1/2"
List Price
£27.35
You Pay
£16.41
You Save
40%
Qty
PM Female Elbow 50mm x Thread 1 1/2"
Code
355382
Product Name
PM Female Elbow 50mm x Thread 1 1/2"
List Price
£27.14
You Pay
£16.28
You Save
40%
Qty
PM Female Elbow 50mm x Thread 2"
Code
355383
Product Name
PM Female Elbow 50mm x Thread 2"
List Price
£35.48
You Pay
£21.29
You Save
40%
Qty
PM Female Elbow 63mm x Thread 2"
Code
355384
Product Name
PM Female Elbow 63mm x Thread 2"
List Price
£35.60
You Pay
£21.36
You Save
40%
Qty
PM Female Elbow 75mm x Thread 2"
Code
355225
Product Name
PM Female Elbow 75mm x Thread 2"
List Price
£62.83
You Pay
£37.70
You Save
40%
Qty
PM Female Elbow 90mm x Thread 3"
Code
355226
Product Name
PM Female Elbow 90mm x Thread 3"
List Price
£62.83
You Pay
£37.70
You Save
40%
Qty
PM Female Elbow 110mm x Thread 4"
Code
355224
Product Name
PM Female Elbow 110mm x Thread 4"
List Price
£107.68
You Pay
£64.61
You Save
40%
Qty
15 products
