PVC Socket Threaded
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 3/8" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu threaded socket is designed to connect two BSP male threaded components within a pipe system. It provides a simple, reliable mechanical joint where solvent welding is not required, making it ideal for installations that may need disassembly for maintenance or future modification.
Manufactured from corrosion-resistant PVCu, the socket offers dependable performance across water systems, industrial installations and general engineering applications. The accurately formed BSP threads ensure secure connections, while the smooth internal bore helps maintain efficient flow through the fitting.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Straight threaded connection: Joins two BSP male threaded components securely
- BSP female threads: Provides reliable mechanical joints on both ends
- Corrosion-resistant PVCu: Prevents rust, pitting, and scale build-up
- Smooth internal bore: Supports efficient flow through the socket
- Imperial sizing compatibility: Designed to match standard BSP threaded fittings
- Easy installation and removal: Ideal for systems requiring serviceable joints

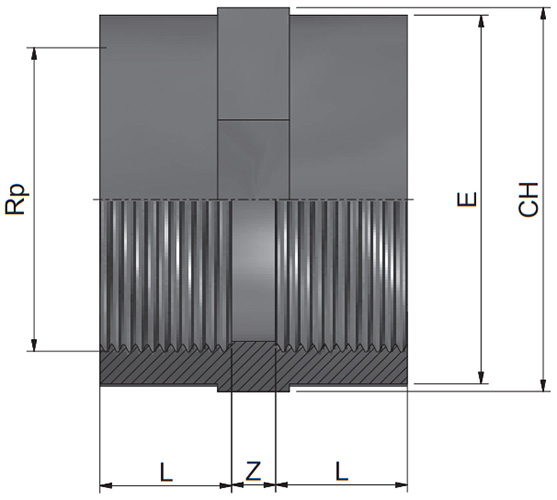

Dimensions
| SKU | Nominal Size (inch) | L (mm) | CH (mm) | Z (mm) | E (mm) |
| 359811 | 3/8 | 11 | 24 | 5 | 24 |
| 356891 | 1/2 | 15 | 30 | 6 | 28 |
| 356892 | 3/4 | 16.3 | 36 | 6.2 | 34 |
| 356893 | 1 | 19.1 | 46 | 6.6 | 42 |
| 356894 | 1 1/4 | 21.4 | 55 | 7 | 51 |
| 356895 | 1 1/2 | 21.41 | 65 | 8 | 62 |
| 356896 | 2 | 26 | 75 | 8 | 77 |
| 356897 | 2 1/2 | 30.2 | 95 | 9 | 89 |
| 356898 | 3 | 33.3 | 105 | 10 | 106 |
| 356899 | 4 | 39.3 | 130 | 11 | 129 |
Downloads
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
