PVC Reducing Nipple Threaded
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" x 3/8" to 4" x 3"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu reducing threaded nipple is designed to connect two BSP female threaded components of different sizes within an imperial pipe system. It provides a simple and compact way to reduce thread size without the need for additional adaptors, making it ideal for space-constrained installations and system modifications.
Manufactured from corrosion-resistant PVCu, the reducing nipple provides reliable long-term performance across various water systems, industrial installations, and general engineering applications. The accurately formed BSP threads ensure secure mechanical joints when installed with a suitable thread sealant, while the straight internal bore helps maintain consistent flow through the transition.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Threaded size reduction: Connects two BSP female threaded fittings of different sizes
- BSP male threads: Provides secure mechanical connections on both ends
- Corrosion-resistant PVCu: Prevents rust, pitting, and scale build-up
- Compact reducing design: Minimises added length and simplifies pipe layouts
- Smooth internal bore: Supports efficient flow through the size transition
- Imperial sizing compatibility: Designed to match standard BSP threaded fittings

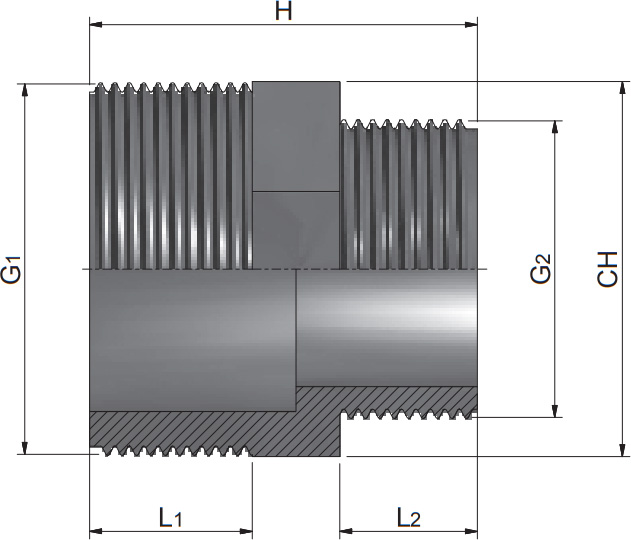

Dimensions
| SKU | Nominal Size (inch) | G2 (inch) | L1 (mm) | L2 (mm) | CH (mm) | H (mm) |
| 359837 | 1/2 | 3/8 | 15 | 11.4 | 24 | 38 |
| 356946 | 3/4 | 1/2 | 16.3 | 15 | 30 | 43 |
| 356947 | 1 | 3/4 | 19.1 | 16.3 | 36 | 47 |
| 356948 | 1 1/4 | 1 | 21.4 | 19.1 | 46 | 56 |
| 356949 | 1 1/2 | 1 1/4 | 21.4 | 21.4 | 50 | 58 |
| 356950 | 2 | 1 1/2 | 26 | 21.4 | 65 | 62 |
| 359838 | 2 1/2 | 2 | 30.2 | 26 | 80 | 73 |
| 359839 | 3 | 2 1/2 | 33.3 | 30.2 | 95 | 82 |
| 359840 | 4 | 3 | 39.3 | 33.3 | 120 | 90 |
