PVC Plug Threaded
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 3/8" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu threaded plug is designed to seal the end of a BSP female threaded fitting or outlet within an imperial pipe system. It is commonly used to blank off unused connections, provide temporary closures during installation, or create secure endpoints for testing and future system expansion.
Manufactured from corrosion-resistant PVCu, the plug offers reliable long-term performance across water systems, industrial installations and general engineering applications. The precisely formed BSP male thread ensures a secure mechanical seal when installed with a suitable thread sealant, while the compact design provides a neat and professional finish.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Secure threaded closure: Effectively seals BSP female threaded outlets
- BSP male thread: Provides a reliable mechanical connection
- Corrosion-resistant PVCu: Prevents rust, pitting, and scale build-up
- Compact and robust design: Ideal for permanent or temporary blanking
- Imperial sizing compatibility: Designed to match standard BSP threaded fittings
- Easy installation and removal: Suitable for maintenance, testing and future system changes

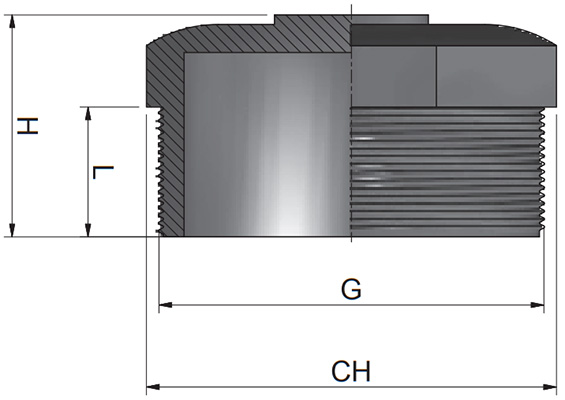

Dimensions
| SKU | Nominal Size (inch) | L (mm) | CH (mm) | H (mm) |
| 359824 | 3/8 | 11.4 | 19 | 23 |
| 357138 | 1/2 | 15 | 24 | 29 |
| 357139 | 3/4 | 16.3 | 30 | 30 |
| 357140 | 1 | 19.1 | 36 | 33 |
| 357141 | 1 1/4 | 21.4 | 46 | 39 |
| 357142 | 1 1/2 | 21.4 | 50 | 39 |
| 357143 | 2 | 26 | 65 | 43 |
| 357144 | 2 1/2 | 30.2 | 80 | 51 |
| 357145 | 3 | 33.3 | 95 | 56 |
| 357146 | 4 | 39.3 | 120 | 63 |
