PVC Hexagon Nipple Threaded
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 3/8" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu hexagon threaded nipple is designed to connect two BSP female threaded components while providing a convenient hexagonal section for spanner tightening. The hex body allows easier installation and removal compared with plain nipples, particularly in tighter spaces or where secure torque application is required.
Manufactured from corrosion-resistant PVCu, the fitting delivers reliable long-term performance in water systems, industrial installations, and general engineering applications. Precisely formed BSP threads ensure secure mechanical joints, while the straight bore supports efficient flow through the connection.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Hexagon body design: Allows easy tightening and removal using standard spanners
- Male to male BSP threads: Connects two BSP female threaded components securely
- Corrosion-resistant PVCu: Prevents rust, scale and pitting over time
- Compact and robust construction: Suitable for tight installations and service work
- Smooth internal bore: Helps maintain efficient flow through the nipple
- Imperial sizing compatibility: Designed to match standard BSP threaded fittings

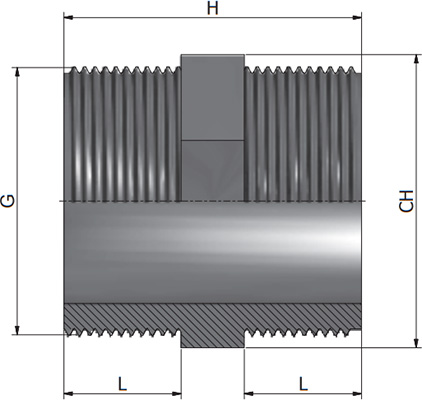

Dimensions
| SKU | Nominal Size (inch) | L (mm) | CH (mm) | H (mm) |
| 359841 | 3/8 | 11.4 | 19 | 35 |
| 356937 | 1/2 | 15 | 24 | 42 |
| 356938 | 3/4 | 16.3 | 30 | 45 |
| 356939 | 1 | 19.1 | 36 | 50 |
| 356940 | 1 1/4 | 21.4 | 46 | 58 |
| 356941 | 1 1/2 | 21.4 | 50 | 58 |
| 356942 | 2 | 25.7 | 65 | 67 |
| 356943 | 2 1/2 | 30.2 | 80 | 80 |
| 356944 | 3 | 33.3 | 95 | 85 |
| 356945 | 4 | 39.3 | 120 | 96 |
Downloads
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
