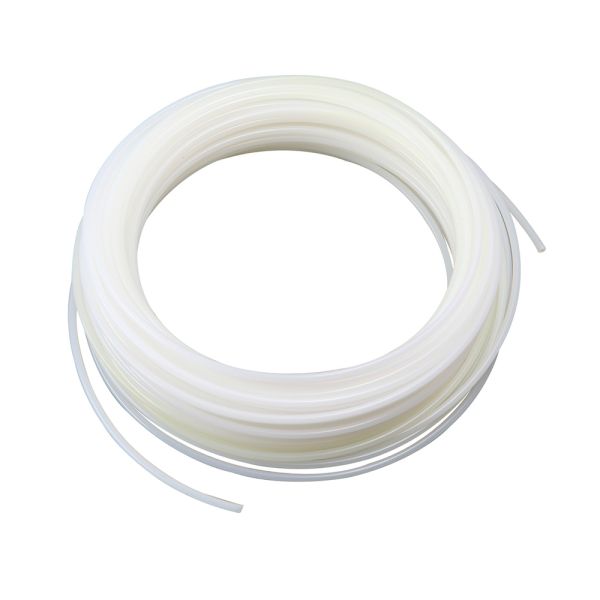

PCL Nylon Tube

Loading...
main product photo
More Info
Useful Information

Technical Specification

  • Material: Nylon 11/12
  • Available Tube Sizes (OD): 4 mm, 6 mm, 8 mm, 10 mm, 12 mm
  • Wall Thickness (approx): Varies with size
  • Working Pressure: Up to 27 bar (at 20°C)
  • Temperature Range: -35°C to +70°C
  • Colour Options: Natural, Black
  • Coil Lengths: 30m

Description

Engineered for versatility and durability, this nylon tubing is a reliable solution for compressed air, fluid transfer, and pneumatic systems. Manufactured to high precision standards, it combines excellent mechanical strength with dimensional stability, delivering long-term performance in both static and dynamic applications.

Key Features & Benefits

  • High-Pressure Capacity: Designed to perform under demanding pressure conditions, up to 27 bar at ambient temperatures.
  • Temperature Resilience: Operates effectively across a broad range from -35°C to +70°C, ideal for varied environments.
  • Chemical Resistance: Offers excellent resistance to oils, fuels, and most industrial chemicals.
  • Flexible Yet Tough: Maintains form and flexibility without compromising structural integrity.
  • Colour-Coded Options: Multiple colour choices for easy circuit identification in complex pneumatic installations.
  • Standard Compliance: Conforms to internationally recognised DIN standards, ensuring consistent quality and interchangeability.
SKU PCL Code Inside Diameter (mm) Outside Diameter (mm) Working Pressure Bend Radius (mm)
489028 TRN-4/2.5-BLACK 2.5 4 400 psi / 27 bar 16
489029 TRN-6/4-BLACK 4 6 350 psi / 24 bar 35
489030 TRN-8/6-BLACK 6 8 255 psi / 17 bar 60
489031 TRN-10/8-BLACK 8 10 200 psi / 14 bar 100
489032 TRN-12/10-BLACK 10 12 160 psi / 11 bar 125
489033 TRN-4/2.5-BLUE 2.5 4 400 psi / 27 bar 16
489034 TRN-6/4-BLUE 4 6 350 psi / 24 bar 35
489035 TRN-8/6-BLUE 6 8 255 psi / 17 bar 60
489036 TRN-10/8-BLUE 8 10 200 psi / 14 bar 100
489037 TRN-12/10-BLUE 10 12 160 psi / 11 bar 125
489038 TRN-4/2.5-NATURAL 2.5 4 400 psi / 27 bar 16
489039 TRN-6/4-NATURAL 4 6 350 psi / 24 bar 35
489040 TRN-8/6-NATURAL 6 8 255 psi / 17 bar 60
489041 TRN-10/8-NATURAL 8 10 200 psi / 14 bar 100
489042 TRN-12/10-NATURAL 10 12 160 psi / 11 bar 125

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
489028 PCL Nylon Tube Black 30m x 2.5mm x 4mm £30.87 45%
You Pay:  £16.98
489029 PCL Nylon Tube Black 30m x 4mm x 6mm £55.73 45%
You Pay:  £30.65
489030 PCL Nylon Tube Black 30m x 6mm x 8mm £69.49 45%
You Pay:  £38.22
489031 PCL Nylon Tube Black 30m x 8mm x 10mm £99.31 45%
You Pay:  £54.62
489032 PCL Nylon Tube Black 30m x 10mm x 12mm £117.09 45%
You Pay:  £64.40
489033 PCL Nylon Tube Blue 30m x 2.5mm x 4mm £30.87 45%
You Pay:  £16.98
489034 PCL Nylon Tube Blue 30m x 4mm x 6mm £55.73 45%
You Pay:  £30.65
489035 PCL Nylon Tube Blue 30m x 6mm x 8mm £69.49 45%
You Pay:  £38.22
489036 PCL Nylon Tube Blue 30m x 8mm x 10mm £99.31 45%
You Pay:  £54.62
489037 PCL Nylon Tube Blue 30m x 10mm x 12mm £117.09 45%
You Pay:  £64.40
489038 PCL Nylon Tube Natural 30m x 2.5mm x 4mm £30.87 45%
You Pay:  £16.98
489039 PCL Nylon Tube Natural 30m x 4mm x 6mm £55.73 45%
You Pay:  £30.65
489040 PCL Nylon Tube Natural 30m x 6mm x 8mm £69.49 45%
You Pay:  £38.22
489041 PCL Nylon Tube Natural 30m x 8mm x 10mm £99.31 45%
You Pay:  £54.62
489042 PCL Nylon Tube Natural 30m x 10mm x 12mm £117.09 45%
You Pay:  £64.40
