Woltmann Flanged Hot

Woltmann Flanged Hot

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Hot water use only
  • Materials: Cast iron bodied, blue epoxy coated with EPDM `O`rings
  • IP68 rated
  • Install vertically or horizontally
  • Model: OMEGA-WE-SDC
  • Accuracy Class: B
  • Max pressure rating up to 10/16 BAR pressure
  • Connections DIN Flanged PN 6
  • Maximum operating temperature: 90°C
  • MID Approved: OIML R49, EN14154 or ISO4064

Useful Info:

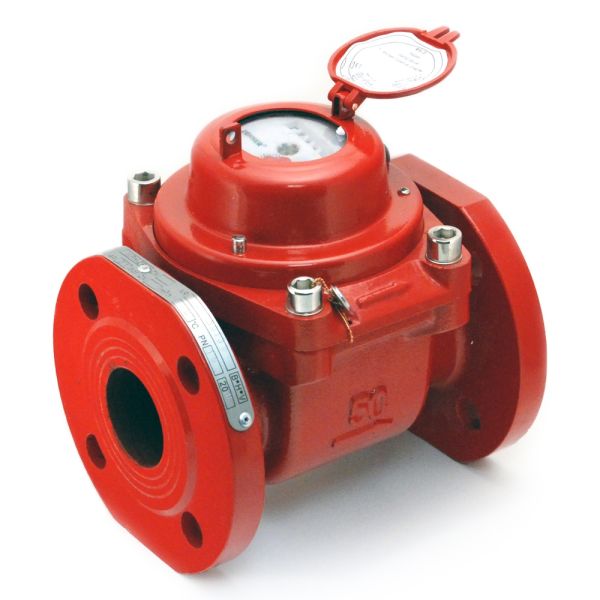

The Woltmann Flanged Water Meter, or 'Helix Meter', is an excellent choice for water distribution and industrial use. If you are planning to use the meter with remote monitoring you can pre-equip them with a reed switch or pulse output which allows connection to AMR systems, Counters or Building Management Systems.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Pulse Kit For Woltmann Meter 90C 1 Pulse = 100 Litres
Code
359778
Product Name
Pulse Kit For Woltmann Meter 90C 1 Pulse = 100 Litres
List Price
£201.96
You Pay
£100.98
You Save
50%
Qty
Pulse Kit For Woltmann Meter 90C 1 Pulse = 1,000 Litres
Code
359779
Product Name
Pulse Kit For Woltmann Meter 90C 1 Pulse = 1,000 Litres
List Price
£201.96
You Pay
£100.98
You Save
50%
Qty
Water Meter Woltmann to 90C Flow 15 m3/hr Flanged 2"/63mm
Code
357428
Product Name
Water Meter Woltmann to 90C Flow 15 m3/hr Flanged 2"/63mm
List Price
£1,389.96
You Pay
£694.98
You Save
50%
Qty
Water Meter Woltmann to 90C Flow 25 m3/hr Flange 2 1/2"/75mm
Code
357429
Product Name
Water Meter Woltmann to 90C Flow 25 m3/hr Flange 2 1/2"/75mm
List Price
£1,413.72
You Pay
£706.86
You Save
50%
Qty
Water Meter Woltmann to 90C Flow 40 m3/hr Flanged 3"/90mm
Code
357430
Product Name
Water Meter Woltmann to 90C Flow 40 m3/hr Flanged 3"/90mm
List Price
£1,627.56
You Pay
£813.78
You Save
50%
Qty
Water Meter Woltmann to 90C Flow 60 m3/hr Flanged 4"/110mm
Code
357431
Product Name
Water Meter Woltmann to 90C Flow 60 m3/hr Flanged 4"/110mm
List Price
£1,865.16
You Pay
£932.58
You Save
50%
Qty
Water Meter Woltmann to 90C Flow 90 m3/hr Flanged 5"/140mm
Code
357432
Product Name
Water Meter Woltmann to 90C Flow 90 m3/hr Flanged 5"/140mm
List Price
£2,364.12
You Pay
£1,182.06
You Save
50%
Qty
Water Meter Woltmann to 90C Flow 150 m3/hr Flanged 6"/160mm
Code
357433
Product Name
Water Meter Woltmann to 90C Flow 150 m3/hr Flanged 6"/160mm
List Price
£2,756.16
You Pay
£1,378.08
You Save
50%
Qty
Water Meter Woltmann to 90C Flow 250 m3/hr Flanged 8"/225mm
Code
357434
Product Name
Water Meter Woltmann to 90C Flow 250 m3/hr Flanged 8"/225mm
List Price
£3,385.80
You Pay
£1,692.90
You Save
50%
Qty
9 products
