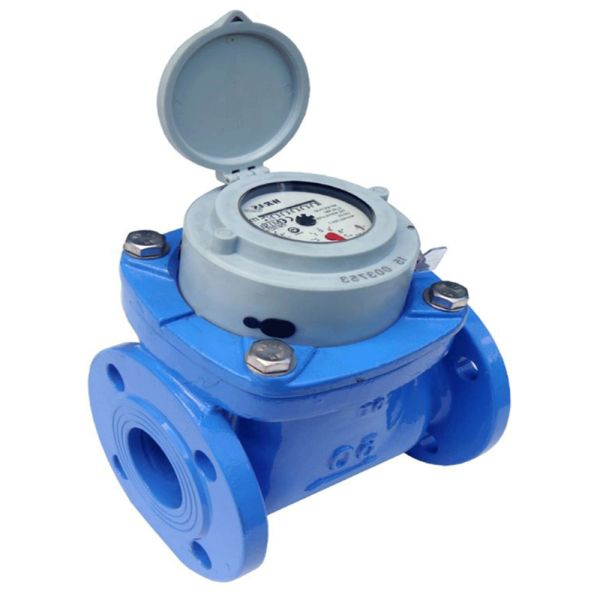

Woltmann Flanged Cold

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Cold water use only
  • Operating temperature +5°c to +30°c
  • Model: OMEGA-WE-SDC
  • IP68 Rated
  • Materials: Cast Iron bodied, epoxy coating and EPDM ‘O’ rings
  • Pressure rating: 16 BAR
  • Sizes available from Pipestock today: 2” (DN50), 2½” (DN65), 3” (DN80), 4” (DN100), 5” (DN125),6” (DN150), 8” (DN200), 10” (DN250)
  • WRAS approved – Listing number: 1102078
  • MID Approved - Specifications according to OIML R49, EN14154 or ISO4064
  • EEC Class B Approved



Useful Info:

The Woltmann Flanged Water Meter can be remote monitored by pre-equipping them with a reed switch or pulse output for convenient connection to AMR systems, Counters or Building Management Systems.


The meter also referred to as a 'Helix Meter' is an excellent choice for secondary and sub metering in commercial or domestic applications.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
357369Pulse Kit For Woltmann Meter 30C 1 Pulse = 100 Litres £71.28 50% £35.64
357370Pulse Kit For Woltmann Meter 30C 1 Pulse = 1,000 Litres £71.28 50% £35.64
357417Water Meter Woltmann to 30C Flow 40 m3/hr Flanged 2"/63mm £546.48 50% £273.24
357418Water Meter Woltmann to 30C Flow 63 m3/hr Flange 2 1/2"/75mm £570.24 50% £285.12
357419Water Meter Woltmann to 30C Flow 63 m3/hr Flanged 3"/90mm £617.76 50% £308.88
357420Water Meter Woltmann to 30C Flow 100 m3/hr Flanged 4"/110mm £677.16 50% £338.58
357421Water Meter Woltmann to 30C Flow 200 m3/hr Flanged 5"/140mm £689.04 50% £344.52
357422Water Meter Woltmann to 30C Flow 250 m3/hr Flanged 6"/160mm £1,188.00 50% £594.00
357423Water Meter Woltmann to 30C Flow 400 m3/hr Flanged 8"/225mm £1,485.00 50% £742.50
357424Water Meter Woltmann to 30C Flow 630 m3/hr Flanged 10"/250mm £2,886.84 50% £1,443.42
357425Water Meter Woltmann to 30C Flow 1000 m3/hr Flange 12"/315mm £4,752.00 50% £2,376.00
357426Water Meter Woltmann to 30C Flow 1600 m3/hr Flanged 16" £7,128.00 50% £3,564.00
357427Water Meter Woltmann to 30C Flow 2500 m3/hr Flanged 20" £8,553.60 50% £4,276.80
