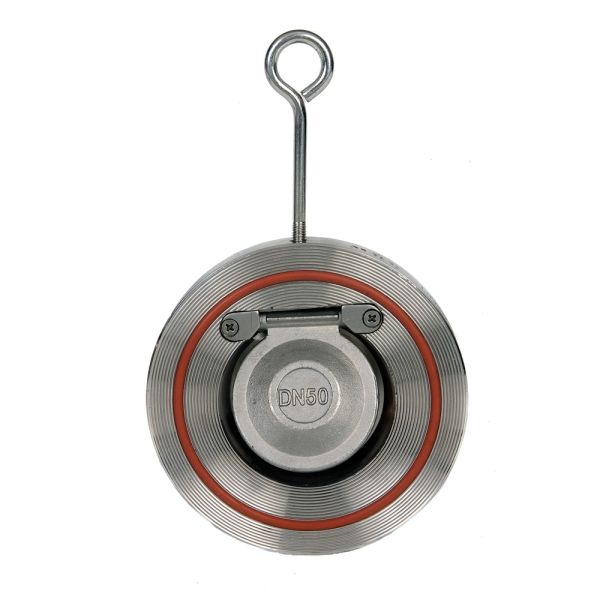

Wafer Check Valve

Useful Information

"WRAS

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Body Material: Stainless Steel
  • Screwed BSPP
  • Max. Pressure 16 bar
  • Viton seats and seals
  • Temperature Range -25°C - 180°C
ALB-art963-diagram Number Part Name Material
1 Body CF8M
2 Disc CF8M
3 Disc O-Ring Viton
4 External O-Ring Viton
5 Hook Steel
6 Stem Stopper Stainless Steel 316
7 Axis Screw Stainless Steel 316
Product Code Thread (Inch) d (mm) D (mm) D1 (mm) H (mm) Weight (Kgs)
353858 2 32 105 84 14 0.85
353859 2 1/2 40 124 96 14 1.15
353860 3 54 136 117.5 14 1.34
353854 4 70 164 148 18 2.3
353855 5 92 194 166 18 3.1
353856 6 114 220 197 20 4.4
353857 8 154 275 249 22 7.1

ALB-art963-Graph



Useful Info:

Available in sizes up to 8".

Suitable for flow in an upwards and horizontal direction.

These Wafer Check Valves only allow flow in a single direction whilst preventing back flow.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353858Stainless Steel Wafer Check Valve 2" £96.77 50% £48.39
353859Stainless Steel Wafer Check Valve 2 1/2" £123.56 50% £61.78
353860Stainless Steel Wafer Check Valve 3" £144.88 50% £72.44
353854Stainless Steel Wafer Check Valve 4" £221.41 50% £110.71
353855Stainless Steel Wafer Check Valve 5" £288.66 50% £144.33
353856Stainless Steel Wafer Check Valve 6" £392.46 50% £196.23
353857Stainless Steel Wafer Check Valve 8" £638.55 50% £319.28
