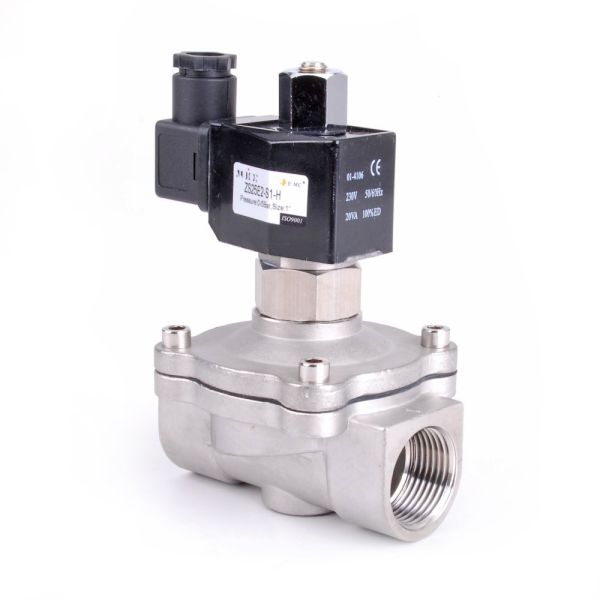

Servo Activated Normally Open NBR
Key Features / Tech Specs / Dimensions:
- Material: Stainless Steel
- 2/2 Way Valve Configuration
- Sizes Up to 2"
- Normally Open Valves
- NBR Diaphragm
- Temperature Range 0°C - 80°C
- Pressure Range 0 - 5 bar AC, 0 - 3 bar DC (Oils May Vary)
 |
Number | Part Name | Material |
| 1 | Lock Nut | Stainless Steel 302 | |
| 2 | Washer | Stainless Steel 302 | |
| 3 | Plate | Aluminium | |
| 4 | O Ring | NBR | |
| 5 | Coil | Enamelled Wire | |
| 6 | Baseplate | Plated Steel | |
| 7 | Plunger Tube Unit | Stainless Steel 304 +1J117 | |
| 8 | Plunger Tube Seal | PTFE | |
| 9 | Bolt | Stainless Steel 302 | |
| 10 | Valve Cover | Stainless Steel 316 | |
| 11 | Plunger Spring | Stainless Steel 304 | |
| 12 | Pilot Unit | Stainless Steel 304 + 1J117 | |
| 13 | Coil Spring | Stainless Steel 304 | |
| 14 | Diaphragm Unit | NBR | |
| 15 | Valve Body | Stainless Steel 316 | |
| 16 | Plug | Nylon |
 |
Port Size (Inch) | A (mm) | B (mm) | H (mm) |
| 3/8 | 69 | 57 | 135 | |
| 1/2 | 69 | 57 | 135 | |
| 3/4 | 73 | 57 | 142 | |
| 1 | 99 | 77.5 | 150 | |
| 1 1/4 | 112 | 86.5 | 180 | |
| 1 1/2 | 123 | 94 | 190 | |
| 2 | 168 | 123 | 216 |
Useful Info:
A Solenoid Valve is an mechanical valve that requires an electric current to operate. The electric current passes through a solenoid generating a magnetic field, which in turn raises or lowers a plunger and diaphragm inside the valve.
Normally Open valves are open until activated by the solenoid.
