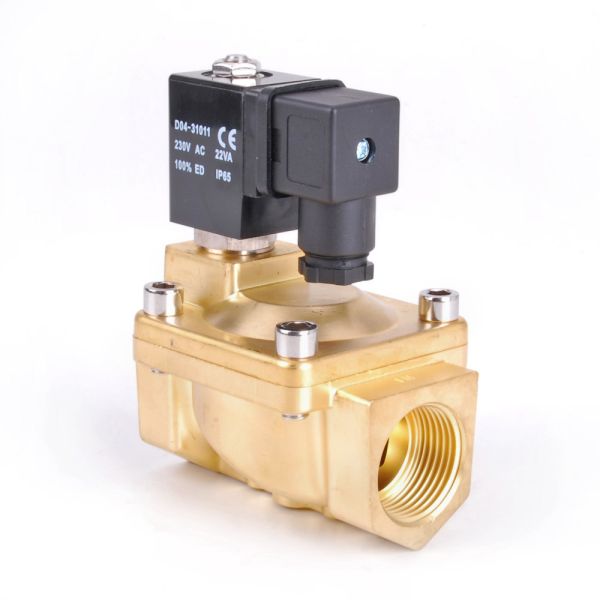

Pilot Operated Normally Closed NBR

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Material: Brass
  • 2/2 Way Valve Configuration
  • Sizes Up to 2"
  • Normally Closed Valves
  • NBR Diaphragm
  • Temperature Range 0°C - 80°C
  • Pressure Range 0.5 - 16 bar (Oils May Vary)
alb-solenoid-brass-pilot-NC-EPDM Number Part Name Material
1 Valve Body Brass
2 Diaphragm NBR
3 Diaphragm Spring Stainless Steel 304
4 Valve Cover Brass
5 Bolt Stainless Steel 302
6 Pilot Seal NBR
7 Pilot Stainless Steel 1J117
8 Pilot Spring Stainless Steel 304
9 O Ring NBR
10 Plunger Tube Unit Stainless Steel 304 + 1J117
11 Coil Enamelled Wire
12 Plug Nylon
13 Washer Stainless Steel 302
14 Lock Nut Stainless Steel 302



alb-solenoid-brass-pilot-NC-EPDM-Size Port Size G (Inch) A (mm) B (mm) H (mm)
3/8 66 48 112
1/2 66 48 112
3/4 75 58 118
1 96 70 131
1 1/4 131 96 146
1 1/2 131 96 146
2 165 120 167



Useful Info:

A Solenoid Valve is an mechanical valve that requires an electric current to operate. The electric current passes through a solenoid generating a magnetic field, which in turn raises or lowers a plunger and diaphragm inside the valve.

Pilot operated valves require a continual pressure of at least 0.5 bar in order to operate correctly.

Normally closed valves are not open until activated by the solenoid.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
