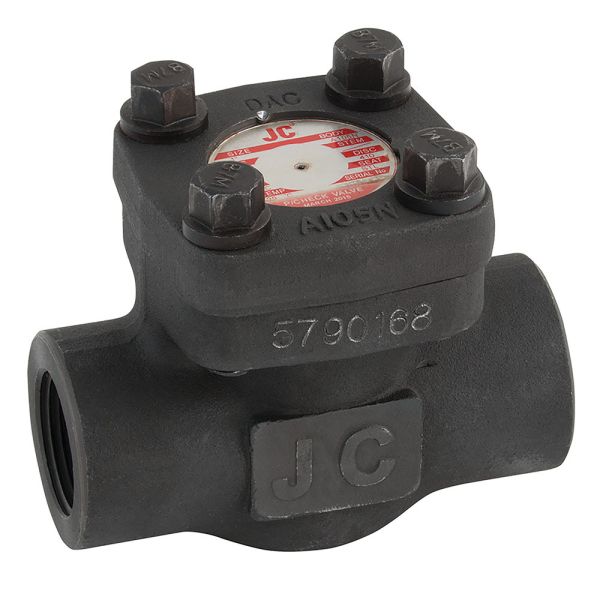

Check Valve
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Forged Steel
- Pressure rated to 138 bar
- Operating temperature: -29°C to +425°C
- NPT threads (female/female)
- ATEX Approved
- Conforms to BS 5352
|
|

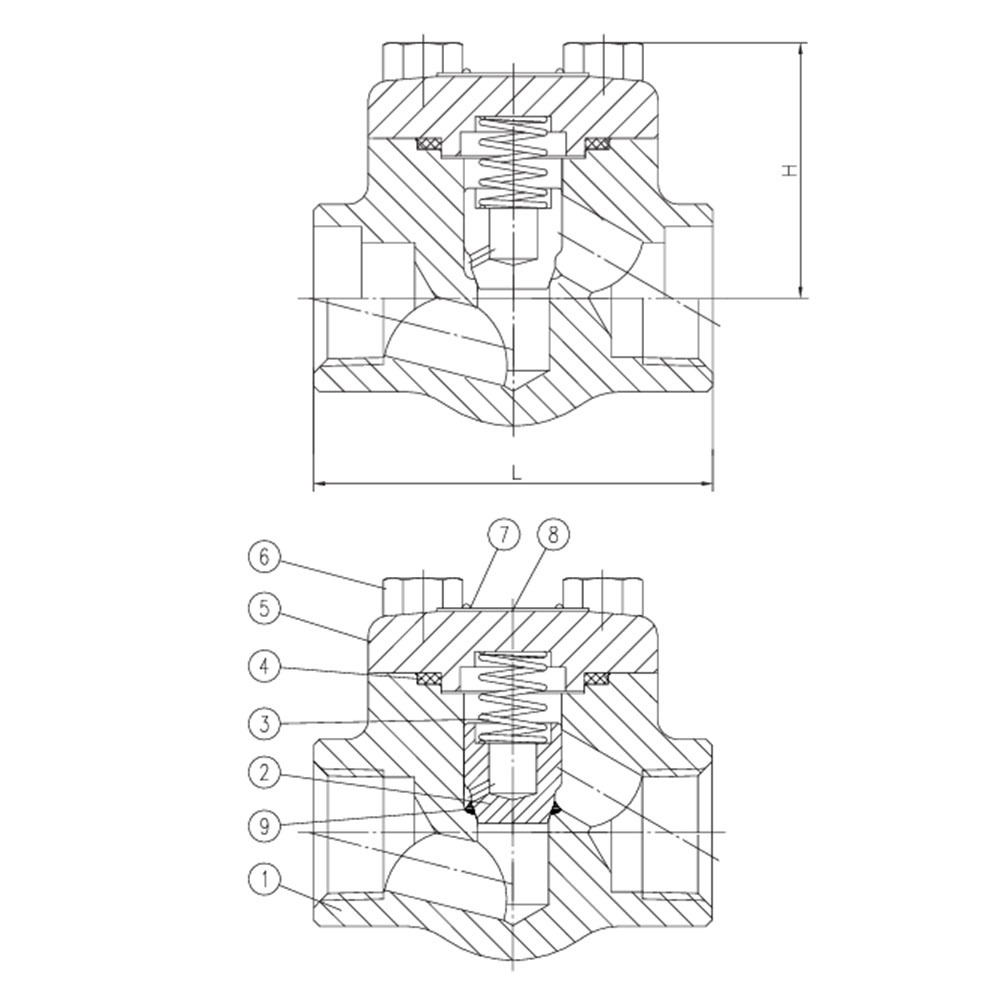

Number | Part Name | Material |
| 1 | Body | A105, Trim 5 | |
| 2 | Piston Disk | A276 420 | |
| 3 | Spring | 17-4PH | |
| 4 | Gasket | AISI 304 + Graphite | |
| 5 | Bonnet | A105 | |
| 6 | Bolt | A193 B7 | |
| 7 | Ribet | A182 F304 | |
| 8 | Name Plate | Aluminium | |
| 9 | Seat | A105 + STL |
| Product Code | DN | L | H | Weight (Kg) |
| 409608 | 15 | 79 | 51 | 1.65 |
| 409609 | 20 | 92 | 55 | 1.80 |
| 409610 | 25 | 110 | 68 | 3.20 |
| 409613 | 32 | 152 | 97 | 5.10 |
| 409611 | 40 | 152 | 97 | 6.20 |
| 409612 | 50 | 172 | 103 | 10.20 |
Useful Info:
Features: Reduced bore. Forged steel body. NPT threads. Class 800 rated
This Check Valve can be used to prevent backflow in a system as well as having a degree of flow control.
