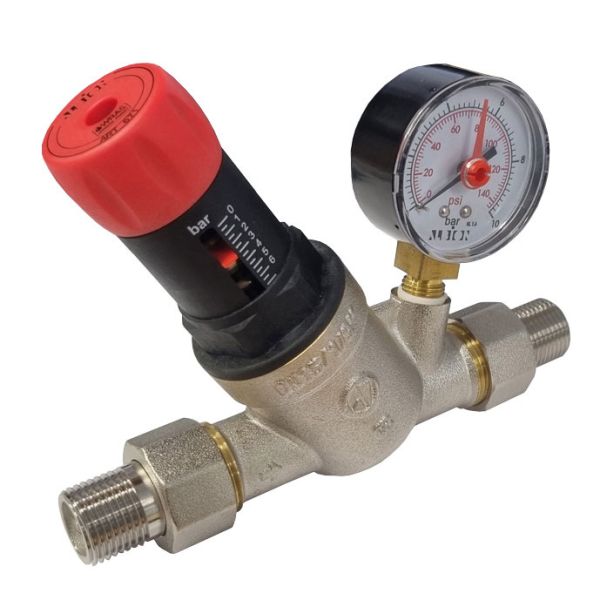

DZR Brass Pressure Reducing Valve Threaded M
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: DZR brass
- WRAS approved
- Rated to 16 bar (static)
- Adjustable pressure range 0.5 bar to 6 bar
- Maximum inlet temperature: 80°C
- Conforms to EN 1567

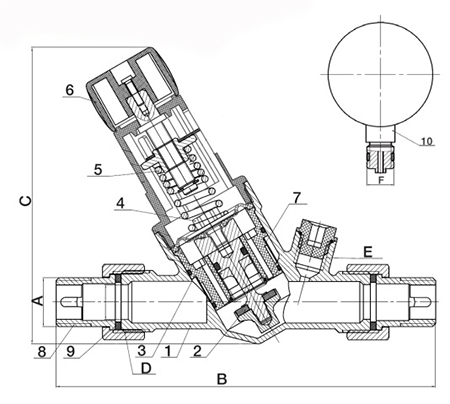

| Product Code | A (inch) |
B (mm) | C (mm) |
D (mm) |
E (mm) |
| 392365 | 1 | 199 | 134 | 24 | 61 |
| 392366 | 1 1/4 | 217 | 138 | 30 | 61 |
| 392367 | 1 1/2 | 236 | 144 | 37 | 61 |
| 392368 | 2 | 269 | 146 | 47 | 61 |
| No. | Description | Material |
| 1 | Body | DZR brass (CW602N) |
| 2 | Cartridge | Nylon 66 +30% FDV |
| 3 | Spring | Stainless steel (EN 0270-3-1.4310) |
| 4 | Adjustable knob | Nylon 66 +30% GF |
| 5 | O-ring | Peroxide cured EPDM |
| 6 | Pressure gauge | |
| 7 | O-ring | Peroxide cured EPDM |
| 8 | Adaptor | Brass (CW617N) |
| 9 | Gasket | Peroxide cured EPDM |
| 10 | Male union end | Brass (CW617N) |
| 11 | Nut | Brass (CW602N) |
Useful Info:
This DZR brass double check valve is designed to prevent contamination as it will only allow fluid to flow in one direction.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
