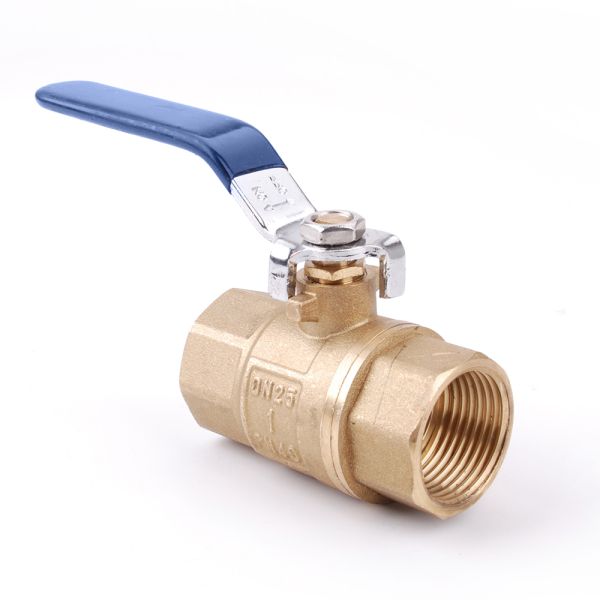

Ball Valve Threaded

Ball Valve Threaded

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

"WRASKey Features / Tech Specs / Dimensions:

  • Material: DZR Brass
  • Female BSPT Thread
  • Wras Approved
  • PTFE Seats and Seals
  • Pressure rated to up to 40 bar
  • Operating temperature range of -20°C to 130°C
  • Full Bore
  • Anti-Blow Out Stem
alb-ballvalve-art50-DZR Number Part Name Material
1 Body DZR Brass
2 Seat PTFE
3 Ball Brass Chrome Plated
4 Body End DZR Brass
5 Stem Brass
6 O Ring NBR
7 Stem Packing PTFE
8 Lock Nut Brass
9 Lever Steel
10 Nut Steel



Product Code Thread DN (inch) O (mm) F (mm) S1 (mm) H (mm) L (mm)
353575 1/4 10 11.5 45 41 82
353576 3/8 10 11.5 45 41 82
353577 1/2 14.5 15 57 52 87.5
353578 3/4 19 18 67 49 100
353579 1 24.5 19.5 77 62 125
353580 1.25 31.5 20 88 81 141
353581 1 1/2 40 21 99 90 141
353582 2 49 26.5 121 96 165



Useful Info:

This Dezincification resistant Ball Valve allows you to connect male BSPT threads while being able to securely shut off flow from one side to the other.

alb-ballvalve-art50-DZR



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DZR Brass Ball Valve BSP Taper F/F 1/4"
Code
353575
Product Name
DZR Brass Ball Valve BSP Taper F/F 1/4"
List Price
£6.73
You Pay
£3.37
You Save
50%
Qty
DZR Brass Ball Valve BSP Taper F/F 3/8"
Code
353576
Product Name
DZR Brass Ball Valve BSP Taper F/F 3/8"
List Price
£7.69
You Pay
£3.85
You Save
50%
Qty
DZR Brass Ball Valve BSP Taper F/F 1/2"
Code
353577
Product Name
DZR Brass Ball Valve BSP Taper F/F 1/2"
List Price
£11.58
You Pay
£5.79
You Save
50%
Qty
DZR Brass Ball Valve BSP Taper F/F 3/4"
Code
353578
Product Name
DZR Brass Ball Valve BSP Taper F/F 3/4"
List Price
£16.86
You Pay
£8.43
You Save
50%
Qty
DZR Brass Ball Valve BSP Taper F/F 1"
Code
353579
Product Name
DZR Brass Ball Valve BSP Taper F/F 1"
List Price
£25.19
You Pay
£12.60
You Save
50%
Qty
DZR Brass Ball Valve BSP Taper F/F 1 1/4"
Code
353580
Product Name
DZR Brass Ball Valve BSP Taper F/F 1 1/4"
List Price
£40.03
You Pay
£20.02
You Save
50%
Qty
DZR Brass Ball Valve BSP Taper F/F 1 1/2"
Code
353581
Product Name
DZR Brass Ball Valve BSP Taper F/F 1 1/2"
List Price
£57.18
You Pay
£28.59
You Save
50%
Qty
DZR Brass Ball Valve BSP Taper F/F 2"
Code
353582
Product Name
DZR Brass Ball Valve BSP Taper F/F 2"
List Price
£85.38
You Pay
£42.69
You Save
50%
Qty
