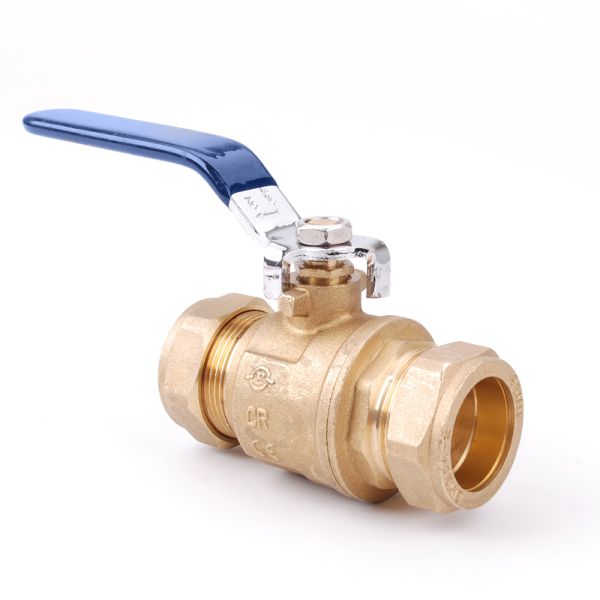

Ball Valve Compression

Ball Valve Compression

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

"WRASKey Features / Tech Specs / Dimensions:

  • Material: DZR Brass
  • Compression Ends
  • Wras Approved
  • PTFE Seats and Seals
  • Pressure rated to up to 25 bar
  • Operating temperature range of -10°C to 110°C
  • Full Bore
  • Anti-Blow Out Stem
alb-ballvalve-art59-DZR Number Part Name Material
1 Body DZR Brass
2 Body End DZR Brass
3 Seat PTFE
4 Ball Brass Chrome Plated
5 Stem Brass
6 O Ring NBR
7 Lever Steel
8 Lock Nut Brass
9 Nut Steel
10 Stem Packing PTFE
11 Nut Brass
12 Olive Brass



Product Code Thread DN (inch) O (mm) F (mm) S1 (mm) H (mm) L (mm)
353661 15 14.5 18.75 70.5 52.5 83
353662 22 19 20.25 80 54.5 93
353663 28 24.5 22 91.5 69 124
353664 35 31.5 24 109 78 133
353665 42 39.5 28 123 86 133
353666 54 49.5 32 150 100 158



Useful Info:

This Dezincification resistant Ball Valve allows you to connect compression ends while being able to securely shut off flow from one side to the other.

alb-ballvalve-art59-DZR



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DZR Brass Ball Valve Compression F/F 15mm
Code
353661
Product Name
DZR Brass Ball Valve Compression F/F 15mm
List Price
£11.07
You Pay
£5.54
You Save
50%
Qty
DZR Brass Ball Valve Compression F/F 22mm
Code
353662
Product Name
DZR Brass Ball Valve Compression F/F 22mm
List Price
£17.54
You Pay
£8.77
You Save
50%
Qty
DZR Brass Ball Valve Compression F/F 28mm
Code
353663
Product Name
DZR Brass Ball Valve Compression F/F 28mm
List Price
£27.47
You Pay
£13.74
You Save
50%
Qty
DZR Brass Ball Valve Compression F/F 35mm
Code
353664
Product Name
DZR Brass Ball Valve Compression F/F 35mm
List Price
£45.10
You Pay
£22.55
You Save
50%
Qty
DZR Brass Ball Valve Compression F/F 42mm
Code
353665
Product Name
DZR Brass Ball Valve Compression F/F 42mm
List Price
£76.64
You Pay
£38.32
You Save
50%
Qty
DZR Brass Ball Valve Compression F/F 54mm
Code
353666
Product Name
DZR Brass Ball Valve Compression F/F 54mm
List Price
£113.77
You Pay
£56.89
You Save
50%
Qty
