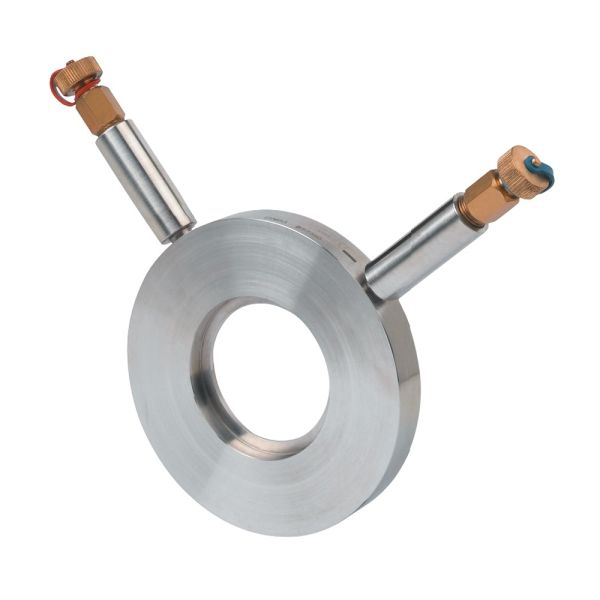

Stainless Steel Metering Station

Stainless Steel Metering Station

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: Stainless Steel
  • Pressure rated to 16 bar
  • Operating temperature range: -10°C to 120°C
  • Fits between BS EN1092 flanges PN16
  • Fixed orifice with ± 5% flow measurement accuracy
  • Supplied with 2 extensions and test points
ALB-Art-270-diagram Number Part Material
1 Body 304 Stainless Steel
2 Extension 304 Stainless Steel
3 Pressure Test Point Brass
Product Code Size (Inch) DN (mm) A (mm) B (mm) C (mm) Weight (Kg)
353429 2" 50 20 108 136 1.4
353430 2 1/2" 65 20 125 145 1.9
353431 3" 80 20 144 154 1.9
353423 4" 100 20 164 164 2.4
353424 5" 125 20 194 179 3.1
353425 6" 150 20 220 192 3.4
353426 8" 200 20 275 219 4.7
353427 10" 250 20 333 248 6
353428 12" 300 20 385 304 8



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Stainless Steel Metering Station 2"
Code
353429
Product Name
Stainless Steel Metering Station 2"
List Price
£247.20
You Pay
£123.60
You Save
50%
Qty
Stainless Steel Metering Station 2 1/2"
Code
353430
Product Name
Stainless Steel Metering Station 2 1/2"
List Price
£282.99
You Pay
£141.50
You Save
50%
Qty
Stainless Steel Metering Station 3"
Code
353431
Product Name
Stainless Steel Metering Station 3"
List Price
£310.74
You Pay
£155.37
You Save
50%
Qty
Stainless Steel Metering Station 4"
Code
353423
Product Name
Stainless Steel Metering Station 4"
List Price
£332.66
You Pay
£166.33
You Save
50%
Qty
Stainless Steel Metering Station 5"
Code
353424
Product Name
Stainless Steel Metering Station 5"
List Price
£473.42
You Pay
£236.71
You Save
50%
Qty
Stainless Steel Metering Station 6"
Code
353425
Product Name
Stainless Steel Metering Station 6"
List Price
£564.41
You Pay
£282.21
You Save
50%
Qty
Stainless Steel Metering Station 8"
Code
353426
Product Name
Stainless Steel Metering Station 8"
List Price
£1,153.75
You Pay
£576.88
You Save
50%
Qty
Stainless Steel Metering Station 10"
Code
353427
Product Name
Stainless Steel Metering Station 10"
List Price
£1,426.70
You Pay
£713.35
You Save
50%
Qty
Stainless Steel Metering Station 12"
Code
353428
Product Name
Stainless Steel Metering Station 12"
List Price
£1,787.06
You Pay
£893.53
You Save
50%
Qty
9 products
