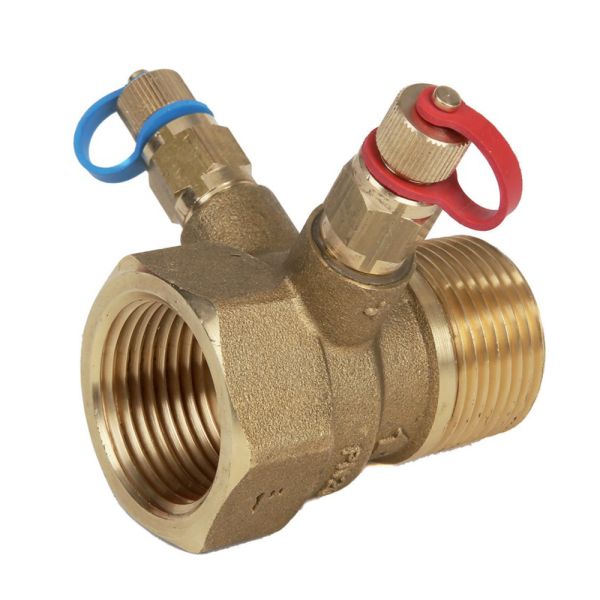

DZR Brass Metering Station

DZR Brass Metering Station

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: DZR Brass
  • Pressure rated to 25 bar
  • Operating temperature range: -10°C to 120°C
  • Screwed BSPT
  • Metering Station
  • Supplied With 2 fitted test points
ALB-Art-27-diagram Number Part Material
1 Body DZR Brass
2 Binder Test Point DZR Brass
Product Code DN (Inch) C (mm) D (mm) Weight (Kg)
353417 1/2" 67 59 0.22
353418 3/4" 67 62 0.27
353419 1" 64 65 0.31
353420 1 1/4" 71 70 0.46
353421 1 1/2" 71 73 0.52
353422 2" 80 79 0.77



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DZR Brass Metering Station BSP Parallel M/F 1/2"
Code
353417
Product Name
DZR Brass Metering Station BSP Parallel M/F 1/2"
List Price
£44.83
You Pay
£22.42
You Save
50%
Qty
DZR Brass Metering Station BSP Parallel M/F 3/4"
Code
353418
Product Name
DZR Brass Metering Station BSP Parallel M/F 3/4"
List Price
£49.64
You Pay
£24.82
You Save
50%
Qty
DZR Brass Metering Station BSP Parallel M/F 1"
Code
353419
Product Name
DZR Brass Metering Station BSP Parallel M/F 1"
List Price
£56.06
You Pay
£28.03
You Save
50%
Qty
DZR Brass Metering Station BSP Parallel M/F 1 1/4"
Code
353420
Product Name
DZR Brass Metering Station BSP Parallel M/F 1 1/4"
List Price
£70.29
You Pay
£35.15
You Save
50%
Qty
DZR Brass Metering Station BSP Parallel M/F 1 1/2"
Code
353421
Product Name
DZR Brass Metering Station BSP Parallel M/F 1 1/2"
List Price
£78.10
You Pay
£39.05
You Save
50%
Qty
DZR Brass Metering Station BSP Parallel M/F 2"
Code
353422
Product Name
DZR Brass Metering Station BSP Parallel M/F 2"
List Price
£105.98
You Pay
£52.99
You Save
50%
Qty
6 products
