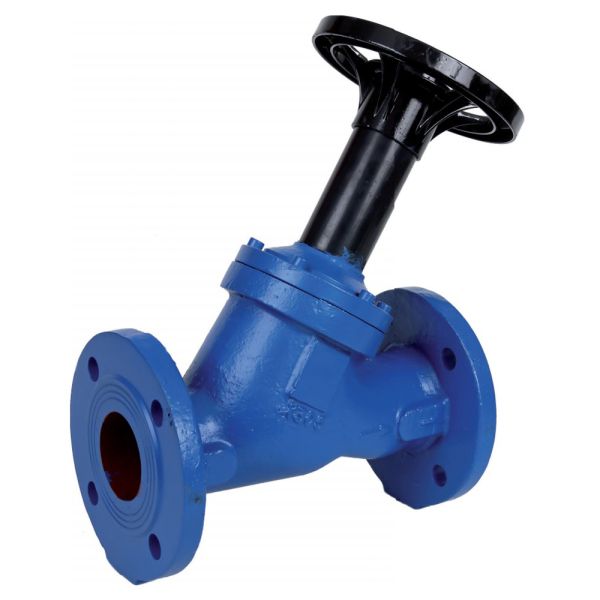

Ductile Iron Double Regulating Valve 16 Bar
Useful Information
Key Features / Tech Specs & Dimensions:
- Materials: Ductile Iron (body)
- Pressure rated to 16 bar
- Operating temperature range: -10°C to 230°C
- PN16 flange mounting
 |
Number | Part | Material |
| 1 | Cone | Cast Iron | |
| 2 | Cone Seat | EPDM Rubber | |
| 3 | Pressure Test Point | Brass | |
| 4 | Body | Ductile Iron | |
| 5 | Bonnet | Cast Iron | |
| 6 | O-Rings | EPDM Rubber | |
| 7 | Stem | 304 Stainless Steel | |
| 8 | Handwheel | Aluminium Alloy |
| Product Code | DN (mm) | B (mm) | C (mm) | D (mm) | Weight (Kg) |
| 353404 | 50 | 230 | 285 | 269 | 12.6 |
| 353405 | 65 | 290 | 335 | 318 | 17.4 |
| 353406 | 80 | 310 | 350 | 320 | 23 |
| 353398 | 100 | 350 | 370 | 340 | 30 |
| 353399 | 125 | 400 | 405 | 375 | 43 |
| 353400 | 150 | 480 | 485 | 403 | 56 |
| 353401 | 200 | 600 | 605 | 537 | 129 |
| 353402 | 250 | 730 | 730 | 596 | 197 |
| 353403 | 300 | 850 | 850 | 695 | 237 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
