Cast Iron Y Strainer Flanged WRAS 16 Bar
Useful Information

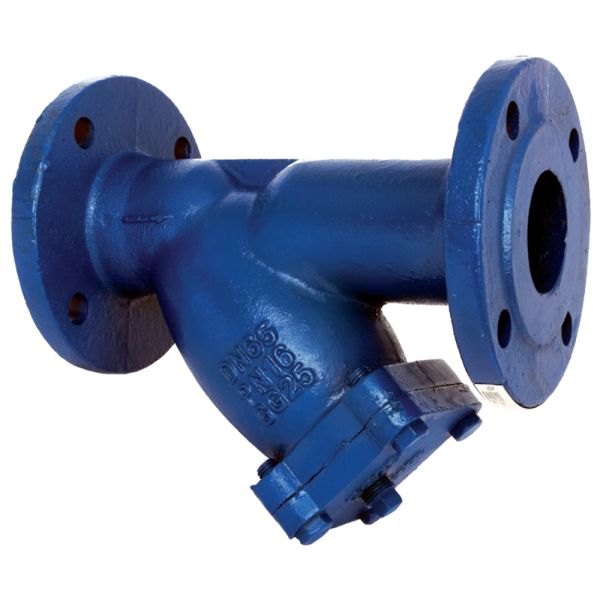

WRAS approved cast iron PN16 Y-strainer for flange mounting with a fusion bonded epoxy coat finish.
| Material | Cast Iron |
| Standards | BS EN558-1 Series 1 |
| Max. Pressure | 16 bar |
| Operating Temperature | -10 to +85°C |
 |
Number | Part Name | Material |
| 1 | Body | Cast Iron BS EN1561 EN-GJL250 | |
| 2 | Screen | Stainless Steel - BS970 304S15 | |
| 3 | Bonnet | Cast Iron BS EN1561 EN-GJL250 | |
| 4 | Gasket | EPDM | |
| 5 | Screw Plug | Cast Brass - BS2874 CZ122 | |
| 6 | Bolt | Stainless Steel | |
| 7 | Washer | Stainless Steel | |
| Product Code | Size (Inch) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | B (mm) | f (mm) | n-d | H (mm) | X (mm) | W (mm) | Weight (Kg) |
| 402847 | 2" | 230 | 165 | 125 | 99 | 20 | 3 | 4-19 | 158 | 1.5 | 2.5 | 10.1 |
| 402848 | 2 1/2" | 290 | 185 | 145 | 118 | 20 | 3 | 4-19 | 176 | 1.5 | 2.5 | 14 |
| 402849 | 3" | 310 | 200 | 160 | 132 | 22 | 3 | 8-19 | 199 | 1.5 | 2.5 | 20.3 |
| 402850 | 4" | 350 | 220 | 180 | 156 | 24 | 3 | 8-19 | 240 | 1.5 | 2.5 | 26.6 |
| 402851 | 5" | 400 | 250 | 210 | 184 | 26 | 3 | 8-19 | 292 | 1.5 | 2.5 | 39.8 |
| 402852 | 6" | 480 | 285 | 240 | 211 | 26 | 3 | 8-23 | 320 | 1.5 | 2.5 | 57 |
| 402853 | 8" | 600 | 340 | 295 | 266 | 30 | 3 | 12-23 | 399 | 1.5 | 2.5 | 97 |
| 402854 | 10" | 730 | 405 | 355 | 319 | 32 | 3 | 12-28 | 517 | 1.5 | 2.5 | 164 |
| 402855 | 12" | 850 | 460 | 410 | 370 | 32 | 4 | 12-28 | 568 | 1.5 | 2.5 | 234 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Approvals:
 |
WRAS approved Approval number 2006311 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
