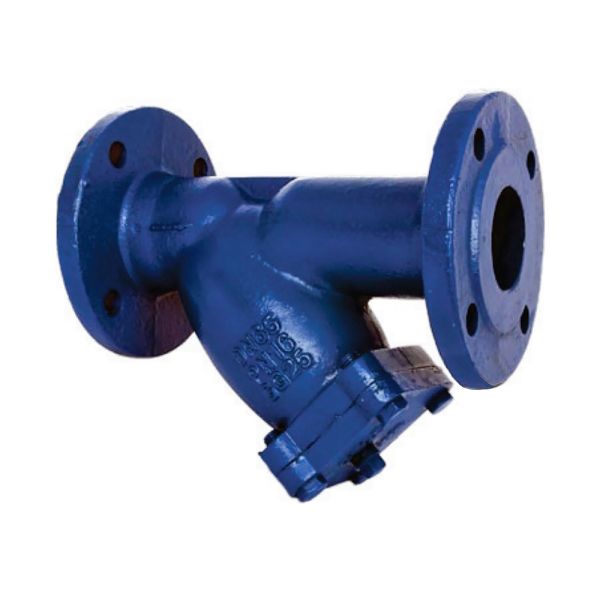

Y Strainer Flanged

Y Strainer Flanged

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: Cast Iron
  • Flange Mount PN16
  • BS EN 558-1 Series 1
  • Working Temperature -10°C - 230°C
  • Max. Pressure 16 bar
Alb-Art-185-diagram Number Part Name Material
1 Body Cast Iron GG25
2 Screen Stainless Steel
3 Bonnect Cast Iron
4 Gasket Graphite
5 Plug Cast Brass
6 Bolt Steel
Product Code Size (Inch) DN (mm) L (mm) D (mm) D1 (mm) D2 (mm) B (mm) f (mm) n-d H (mm) Mesh Weight (Kg)
373126 2" 50 230 165 125 99 20 3 4-19 156 1.5 10.1
373127 2 1/2" 65 290 185 145 118 20 3 4-19 176 1.5 14
373128 3" 80 310 200 160 132 22 3 8-19 199 1.5 20.3
373129 4" 100 350 220 180 156 24 3 8-19 240 1.5 26.6
373130 5" 125 400 250 210 184 26 3 8-19 292 1.5 39.8
373131 6" 150 480 285 240 211 26 3 8-23 320 1.5 57
373132 8" 200 600 340 295 266 30 3 12-23 399 1.5 97
373133 10" 250 730 405 355 319 32 3 12-28 516 1.5 164
373134 12" 300 850 460 410 370 32 4 12-28 568 1.5 234



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Cast Iron Flanged Y Strainer PN16 2"
Code
373126
Product Name
Cast Iron Flanged Y Strainer PN16 2"
List Price
£161.19
You Pay
£96.71
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 2 1/2"
Code
373127
Product Name
Cast Iron Flanged Y Strainer PN16 2 1/2"
List Price
£220.78
You Pay
£132.47
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 3"
Code
373128
Product Name
Cast Iron Flanged Y Strainer PN16 3"
List Price
£294.97
You Pay
£176.98
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 4"
Code
373129
Product Name
Cast Iron Flanged Y Strainer PN16 4"
List Price
£440.39
You Pay
£264.23
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 5"
Code
373130
Product Name
Cast Iron Flanged Y Strainer PN16 5"
List Price
£756.73
You Pay
£454.04
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 6"
Code
373131
Product Name
Cast Iron Flanged Y Strainer PN16 6"
List Price
£1,042.85
You Pay
£625.71
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 8"
Code
373132
Product Name
Cast Iron Flanged Y Strainer PN16 8"
List Price
£1,795.47
You Pay
£1,077.28
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 10"
Code
373133
Product Name
Cast Iron Flanged Y Strainer PN16 10"
List Price
£2,893.00
You Pay
£1,735.80
You Save
40%
Qty
Cast Iron Flanged Y Strainer PN16 12"
Code
373134
Product Name
Cast Iron Flanged Y Strainer PN16 12"
List Price
£4,094.96
You Pay
£2,456.98
You Save
40%
Qty
9 products
