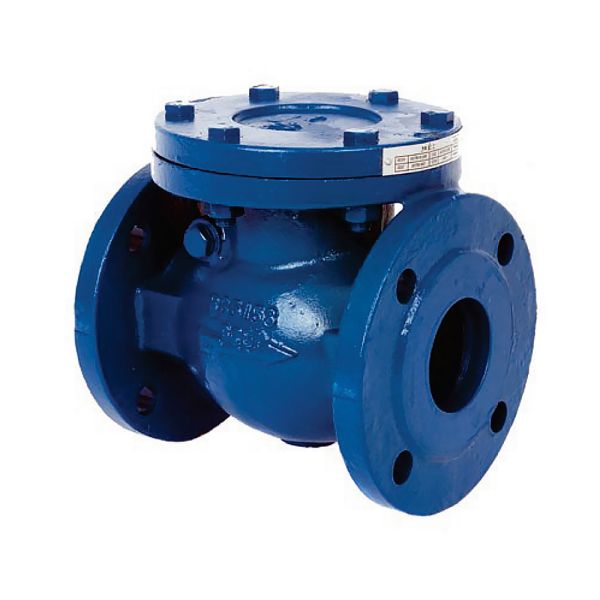

Swing Check Valve

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: Cast Iron
  • BS5153 (BS EN 558-1 Series 10)
  • Flange Mount PN16
  • Max. Pressure 16 bar
  • Temperature Range -10°C - 230°C
Alb-Art-170-diagram Number Part Name Material
1 Body Cast Iron GG25
2 Seat Ring Cast Bronze
3 Disc Ring Cast Bronze
4 Disc Ring Cast Iron
5 Hanger Cast Iron
6 Washer Steel
7 Nut Steel
8 Split Pin Stainless Steel
9 Disc Screw Steel
10 Side Pin Brass
11 Gasket Soft Steel Carboard
12 Hanger Pin Stainless Steel
13 Bonnect Cast Steel
14 Gasket Graphite
15 Bolt Steel
16 Nut Steel
17 ID Plate Aluminium
18 Pin Stainless Steel
Product Code Size (Inch) DN (mm) L (mm) D (mm) D1 (mm) D2 (mm) B (mm) n-d f (mm) H (mm) Weight (Kg)
373083 2" 50 203 165 125 99 20 4-19 3 112 11.6
373084 2 1/2" 65 216 185 145 118 20 4-19 3 132 17.5
373085 3" 80 241 200 160 132 22 8-19 3 141 21.4
373086 4" 100 292 220 180 156 24 8-19 3 162 37
373087 5" 125 330 250 210 184 26 8-19 3 192 56.2
373088 6" 150 356 285 240 211 26 8-23 3 211 72.4
373089 8" 200 496 340 295 266 30 12-23 3 270 123
373090 10" 250 622 405 355 319 32 12-28 3 316 201
373091 12" 300 699 460 410 370 32 12-28 4 357 291
