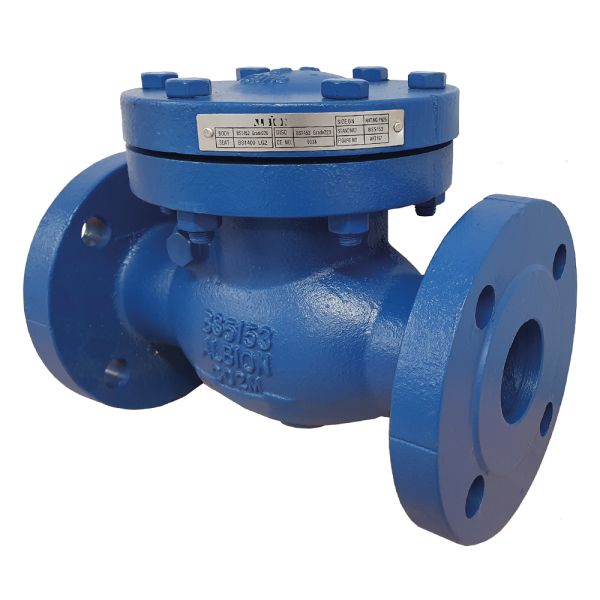

Cast iron swing check valve confoming to BS EN1092 PN25 for flange mounting.

Material	Cast Iron
Standards	BS5153 (BS EN 558-1 Series 21)
Max. Pressure	25 bar
Operating Temperature	-10 to +230°C

Number	Part Name	Material
1	Body	Cast Iron BS EN1561 EN-GJL-250
2	Seat Ring	Cast Bronze - BS1400 LG2
3	Disc Ring	Cast Bronze - BS1400 LG2
4	Disc	Cast Iron BS EN1561 EN-GJL-250
5	Hanger	Ductile Iron BS EN1563 EN-GJS-450-10
6	Washer	Stainless Steel - BS970 304S15
7	Nut	Stainless Steel - BS970 304S15
8	Split Pin	Stainless Steel - BS970 304S15
9	Disc Screw	Stainless Steel - BS970 304S15
10	Side Pin	Brass - BS2874 CZ122
11	Gasket	Teflon
12	Hanger Pin	Stainless Steel - BS970 304S15
13	Bonnet	Cast Iron BS EN1561 EN-GJL-250
14	Gasket	EPDM - BS EN681-1 IRHD66-75
15	Bolt	Stainless Steel - BS970 304S15
16	Nut	Stainless Steel - BS970 304S15
17	ID Plate	Aluminium
18	Pin	Stainless Steel - BS970 304S15

Product Code	Size (Inch)	DN (mm)	L (mm)	D (mm)	D1 (mm)	D2 (mm)	B (mm)	n-d	f (mm)	H (mm)	Weight (Kg)
402772	2"	50	267	165	125	99	22.2	4-19	3	135	17.6
402773	2 1/2"	65	292	191	145	118	25.4	8-19	3	150	31
402774	3"	80	318	210	160	132	28.6	8-19	3	166	35.8
402775	4"	100	356	254	190	156	31.8	8-23	3	190	55.7
402776	5"	125	400	279	220	184	34.9	8-28	3	206	80.4
402777	6"	150	444	318	250	211	36.5	8-28	3	244	110.9
402778	8"	200	533	381	310	274	41.3	12-28	3	291	180
402779	10"	250	622	445	370	330	47.6	12-31	3	337	277
402780	12"	300	711	521	430	389	50.8	16-31	4	383	408.5
