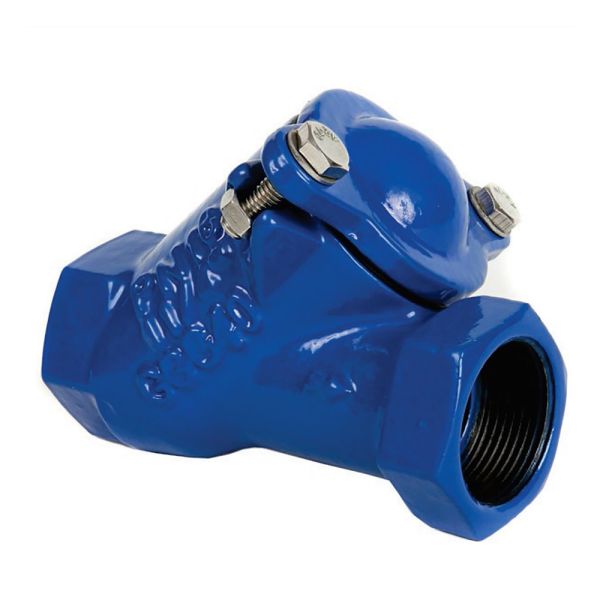

Ball Check Valve Threaded BSPP

Ball Check Valve Threaded BSPP

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: Cast Iron
  • BS5153 (BS EN 558-1 Series 10)
  • Screwed BSPP
  • Max. Pressure 16 bar
  • Temperature Range -0°C - 80°C
  • Epoxy Coat
Alb-Art-171-diagram Number Part Name Material
1 Body Ductile Iron
2 Gasket NBR
3 Cap Ductile Iron
4 Ball NBR
5 Bolt Steel
6 Nut Steel
Product Code Size (Inch) DN (mm) L (mm) C (mm) H (mm) Weight (Kg)
373092 1" 25 125 47 75 1.33
373093 1 1/4" 32 132 59 75 1.71
373094 1 1/2" 40 145 70 85 1.71
373095 2" 50 174 82 126 4.16



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Ductile Iron Ball Check Valve PN16 Female BSPP 1"
Code
373092
Product Name
Ductile Iron Ball Check Valve PN16 Female BSPP 1"
List Price
£108.22
You Pay
£64.93
You Save
40%
Qty
Ductile Iron Ball Check Valve PN16 Female BSPP 1 1/4"
Code
373093
Product Name
Ductile Iron Ball Check Valve PN16 Female BSPP 1 1/4"
List Price
£117.78
You Pay
£70.67
You Save
40%
Qty
Ductile Iron Ball Check Valve PN16 Female BSPP 1 1/2"
Code
373094
Product Name
Ductile Iron Ball Check Valve PN16 Female BSPP 1 1/2"
List Price
£132.43
You Pay
£79.46
You Save
40%
Qty
Ductile Iron Ball Check Valve PN16 Female BSPP 2"
Code
373095
Product Name
Ductile Iron Ball Check Valve PN16 Female BSPP 2"
List Price
£169.88
You Pay
£101.93
You Save
40%
Qty
4 products
