Threaded Lockshield Drain Cock

Useful Information

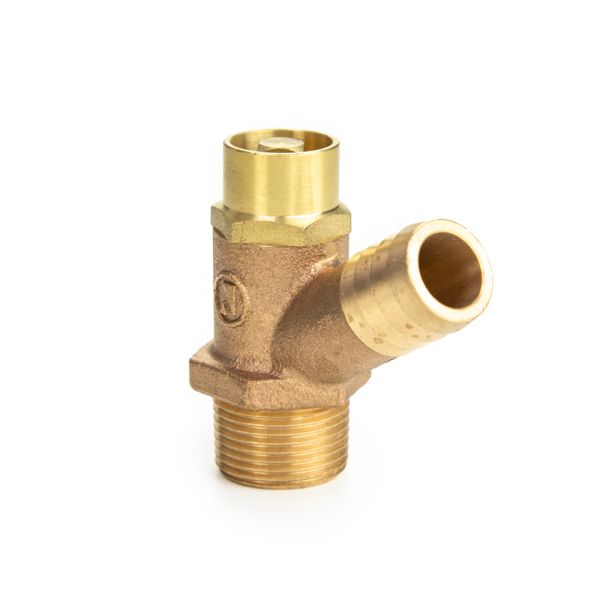

Threaded lockshield drain cock with male BSP tapered thread (ISO 7/1) with hose connection outlet.

Material Bronze
Standards BS 2879/2 Type A
Pressure Rating 16 bar
Operating Temperature -20°C to +120°C



art-311-drain-cock-threaded-m
Number Part Name Material
1 Body Bronze
2 Bonnet Brass
3 Stem Brass
4 Baffle Brass
5 Washer EPDM
6 O-Ring EPDM
7 O-Ring EPDM



Product Code DN A (mm) B (mm) C (mm) D (mm) E (mm) L (mm) Weight (Kgs)
402749 1/2" 42 Ø9.5 15 Ø14 Ø9.5 53.5-58.5 0.13
402750 3/4" 54 Ø14.2 17 Ø20.5 Ø14 65-71.5 0.27



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approved

Approval number 1910057



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402749Bronze Drain Cock Lockshield Thread M BSPT 1/2" £24.63 40% £14.78
402750Bronze Drain Cock Lockshield Thread M BSPT 3/4" £46.16 40% £27.70
