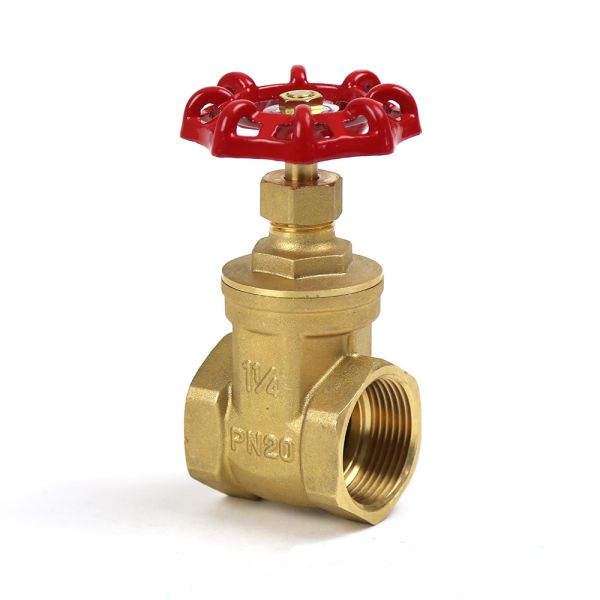

Gate Valve Threaded

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited - Product images are for illustrative purposes only

Key Features / Tech Specs / Dimensions:

  • Material: Brass
  • Pressure rated to 20 bar
  • Operating temperature: -10°C to 180°C
  • BSPT threads (female/female)
  • BS5154
alb-brass-gate-valve-art610 Number Part Name Material
1 Body Brass
2 Wedge Brass
3 Bonnet Brass
4 Stem Packing PTFE
5 Gland Nut Brass
6 Stem Brass
7 Handwheel Cast Iron



Product Code Thread DN (inch) L (mm) H (mm) D (mm)
353668 1/2 43 72.1 55
353669 3/4 46 76.7 55
353670 1 52 87.6 60
353671 1 1/4 65 103 72
353672 1 1/2 66 113.7 72
353673 2 82.5 147.7 80
353674 2 1/2 94 163.5 100
353675 3 103 190 110
353667 4 119.5 235 130



Useful Info:

This biodirectional Gate Valve can be used to shut off flow in a system as well as having a degree of flow control.

alb-brass-gate-valve-art610



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353668Brass Gate Valve BS5154 BSP Taper F/F 1/2" £11.17 50% £5.59
353669Brass Gate Valve BS5154 BSP Taper F/F 3/4" £15.05 50% £7.53
353670Brass Gate Valve BS5154 BSP Taper F/F 1" £20.42 50% £10.21
353671Brass Gate Valve BS5154 BSP Taper F/F 1 1/4" £33.36 50% £16.68
353672Brass Gate Valve BS5154 BSP Taper F/F 1 1/2" £44.97 50% £22.49
353673Brass Gate Valve BS5154 BSP Taper F/F 2" £65.72 50% £32.86
353674Brass Gate Valve BS5154 BSP Taper F/F 2 1/2" £119.05 50% £59.53
353675Brass Gate Valve BS5154 BSP Taper F/F 3" £154.77 50% £77.39
353667Brass Gate Valve BS5154 BSP Taper F/F 4" £290.34 50% £145.17
