Y Strainer

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited - Product images are for illustrative purposes only

Key Features / Tech Specs / Dimensions:

  • Material: brass (body and plug), stainless steel (filter)
  • Pressure rated to 20 bar
  • Operating temperature: 0°C to 150°C
  • BSP parallel threads (female/female)

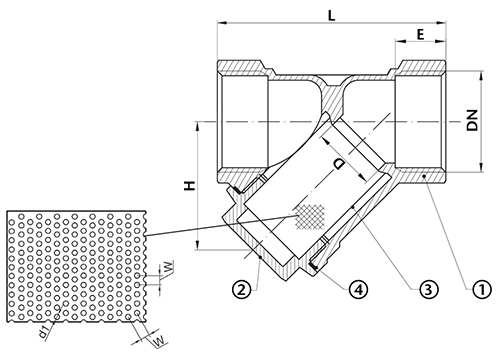

alb-ystrainer-art68 Number Part Name Material
1 Body Brass
2 Bonnet Brass
3 Strainer Stainless Steel 304
4 Gasket PTFE



Product Code Thread DN (inch) L (mm) H (mm) E (mm) D (mm) Mesh (mm)
353359 1/2 57 34.5 12.5 15 30
353360 3/4 72 39.5 15 18.5 30
353361 1 74.5 43 16.5 21 30
353362 1 1/4 95 54 18 29 20
353363 1 1/2 105 61.5 18 38 20
353364 2 129 61.5 20 46 20
353365 2 1/2 142.5 83 20 58 20
353366 3 160 93 22 64 20
353356 4 245 143 30 100 20



Useful Info:

These Y Strainers prevent damage to a system by utilising a mesh to collect debris.

Positioned at a 60° angle.

A hex nut above the strainer allows for easy maintenance without the need for removal.

alb-ystrainer-art68



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353359Brass Y Strainer BSP Parallel F/F 1/2" £9.07 50% £4.54
353360Brass Y Strainer BSP Parallel F/F 3/4" £12.69 50% £6.35
353361Brass Y Strainer BSP Parallel F/F 1" £16.85 50% £8.43
353362Brass Y Strainer BSP Parallel F/F 1 1/4" £31.87 50% £15.94
353363Brass Y Strainer BSP Parallel F/F 1 1/2" £39.99 50% £20.00
353364Brass Y Strainer BSP Parallel F/F 2" £68.15 50% £34.08
353365Brass Y Strainer BSP Parallel F/F 2 1/2" £135.05 50% £67.53
353366Brass Y Strainer BSP Parallel F/F 3" £173.29 50% £86.65
353356Brass Y Strainer BSP Parallel F/F 4" £355.65 50% £177.83
