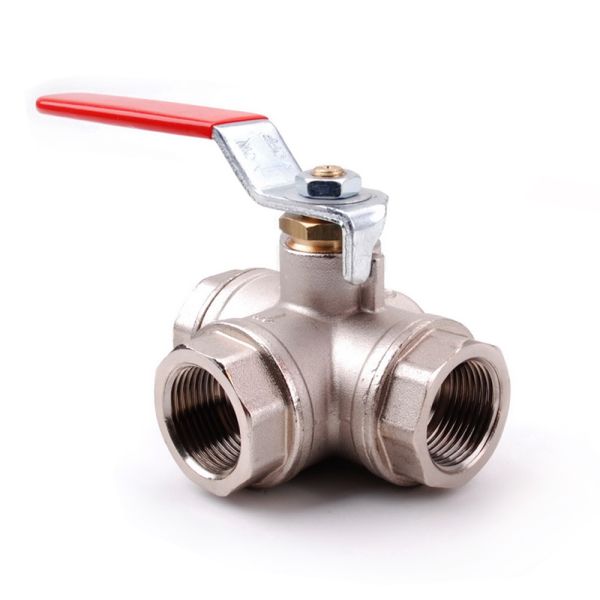

3 Way L Port Threaded

3 Way L Port Threaded

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Material: Nickle Plated Brass
  • Female BSPP Thread
  • PTFE Seat and Seals
  • Pressure rated to up to 32 bar (dependent on size)
  • Operating temperature range of -20°C to 150°C (Liquid Form)
  • Reduced Bore
  • L Port
albion-ballvalve-art70-71-diagram Number Part Name Material
1 Body Brass Nickle Plated
2 Body End Brass Nickle Plated
3 Seat PTFE
4 Ball Brass Chrome Plated
5 Stem Brass
6 Stem Seat PTFE
7 Packing Nut Brass
8 Lever Steel / PVC-Plastic Coated
10 Nut Steel / Zinc Plated

L Ball Positions



Product Code Thread DN (inch) S (mm) H (mm) B (mm) A (mm) F (mm) CH (mm) L (mm) ø (mm)
353694 1/4 74 58 37 22 12 22 90 10
353695 3/8 74 58 37 22 12 22 90 10
353696 1/2 80 60 39 24 14 29 125 12
353697 3/4 90 64 46 28 16 34 125 15
353698 1 105 73 52 31 19 42 140 20
353699 1 1/4 115 79 58 35 21 50 140 25
353700 1 1/2 138 100 69 42 23 57 220 32
353701 2 161 105 80 48 26 68 220 40



Useful Info:

This 3 Way Ball Valve allows you to connect three male BSPP threads while being able to securely change direction of flow from one side to the other.

albion-ballvalve-art70-71-diagram



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1/4"
Code
353694
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1/4"
List Price
£52.32
You Pay
£39.24
You Save
25%
Qty
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 3/8"
Code
353695
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 3/8"
List Price
£52.32
You Pay
£39.24
You Save
25%
Qty
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1/2"
Code
353696
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1/2"
List Price
£68.94
You Pay
£51.71
You Save
25%
Qty
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 3/4"
Code
353697
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 3/4"
List Price
£90.37
You Pay
£67.78
You Save
25%
Qty
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1"
Code
353698
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1"
List Price
£129.57
You Pay
£97.18
You Save
25%
Qty
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1 1/4"
Code
353699
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1 1/4"
List Price
£161.30
You Pay
£120.98
You Save
25%
Qty
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1 1/2"
Code
353700
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 1 1/2"
List Price
£276.42
You Pay
£207.32
You Save
25%
Qty
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 2"
Code
353701
Product Name
Brass Ball Valve 3 Way L Port BSP Parallel F/F/F 2"
List Price
£401.88
You Pay
£301.41
You Save
25%
Qty
8 products
