Medium Temperature

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer: Norres
  • Supplied in compressed 10 metre lengths
  • Working temperature: -40°C to 125°C
  • Intermittent to 150°C
  • Smooth bore, optimised flow
  • Abrasion, chemical, UV and ozone resistance
  • Conforms to RoHS guidelines

Product Code Interior Diameter (mm) Exterior Diameter (mm) Working Pressure (bar) Vacuum Pressure (bar) Weight (kg) Length (m)
374401 50 58 1.440 0.365 4.1 10
374402 65 73 1.110 0.255 5.3 10
374403 75 84 0.965 0.195 6.4 10
374404 100 109 0.725 0120 9.7 10
374405 125 134 0.590 0.085 12 10
374406 150 159 0.485 0.075 15.2 10
374407 200 209 0.370 0.055 20 10

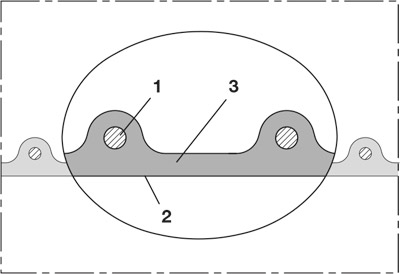

Useful Info:

  1. Spring steel
  2. High temp Pre-PUR
  3. Wall thickness: 1.0mm
airduc-diag

This industrial grade ducting is supplied in 10-metre lengths, compressed to save in cost and space. This heat resistant hose allows for working temperatures between -40°C and 125°C (intermittent to 150°C).

Manufactured from a special polyurethane with a wire helix reinforcement made of spring steel, this hose is ideal for the suction and transportation of a range of abrasive solids and/or fumes, particularly those of fairly high heat (150° or below). Suitable applications include industrial vacuum cleaners, paper and textile suction and machines such as printers blowers and compressors.

The wall is gas and liquid tight and medium in weight. It has high tensile strength and tear resistance while offering excellent protection against abrasions, chemicals and UV rays.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
374401Norres Industrial Medium Temperature Ducting 10m x 50mm £436.85 10% £393.17
374402Norres Industrial Medium Temperature Ducting 10m x 65mm £497.55 10% £447.80
374403Norres Industrial Medium Temperature Ducting 10m x 75mm £552.60 10% £497.34
374404Norres Industrial Medium Temperature Ducting 10m x 100mm £713.10 10% £641.79
374405Norres Industrial Medium Temperature Ducting 10m x 125mm £890.25 10% £801.23
374406Norres Industrial Medium Temperature Ducting 10m x 150mm £1,043.85 10% £939.47
374407Norres Industrial Medium Temperature Ducting 10m x 200mm £1,419.90 10% £1,277.91
