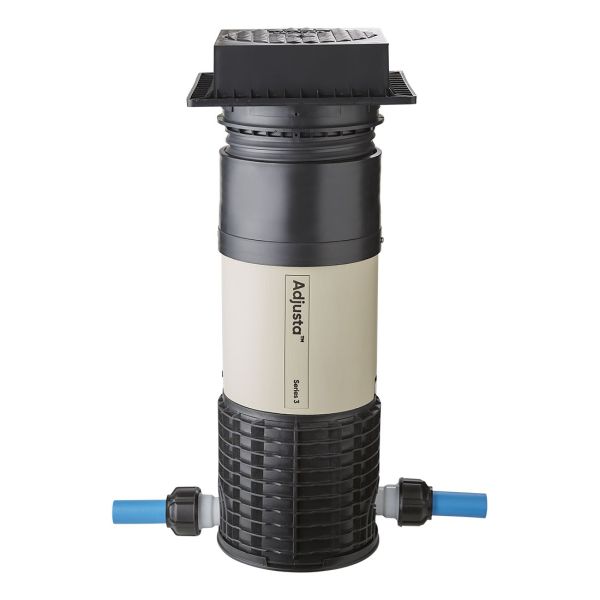

Adjusta Box Surface Box And Round Lid

• Lid Type: Surface box with tethered round lid
• Connection Sizes Available: 25mm and 32mm
• Guard Tube: PVC
• Manifold: Acetal
• Service Pipes: PE
• Other Components: Recycled PP
• Pressure Ratings: Tail - 12.5 bar, Compression - 16 bar
• Operating Temperature: -20°C to +50°C
• Manifold: G 1 1/2" concentric water meter
• Valve Configuration: Acetal manifold 1/4 - turn stop valve with integrated category 3 double-check valve
• Application: Potable water meter housing at mains to the domestic supply boundary
• Standards & Approvals: BS 5834-1:2017, BS 5834-2:2011, EN12201 (pipe tails), BSI Kitemark Certified (KM 508224)

Engineered for modern potable water installations, this boundary box includes the latest Philmac 3G connection system, featuring Slide and Tighten™ technology for fast, tool-free assembly on non-contaminated land. Fitted with a tethered surface box (LUBA1036) incorporating a round water-marked lid with a keyhole and location plate, the system ensures secure installation, easy maintenance, and accurate alignment. Suitable for 25mm and 32mm service pipe connections.

• Philmac's new 3G connection for non-contaminated land
• Heavy-duty surface box for enhanced surface integration
• Round lid marked ‘water’ for quick identification
• WRAS-approved manifold
• Frost protection to -20° with expanded polyethylene foam pad
• Load-tested to exceed 5 tonnes (Grade B, WIS 4-37-01 compliant)
• Long-life design: minimum 50 years
• Certified to ISO 9001, ISO 14001, and ISO 45001
• Adjustable height and pitch whilst maintaining loading capacity, remains level for secure installation
