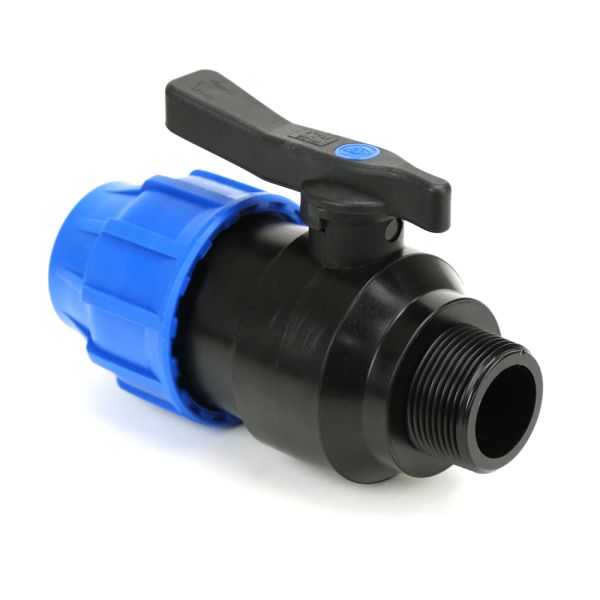

MDPE Ball Valve M Thread

MDPE Ball Valve M Thread

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Manufactured by Plastica Alfa
  • Max. Pressure 16 bar
  • Sizes 20-63mm Available
  • Compression fitting and Male thread
  • Quick and easy to install
  • Body Material: Polypropylene
  • O Ring Material: NBR

MDPE - Bal Valve - Male

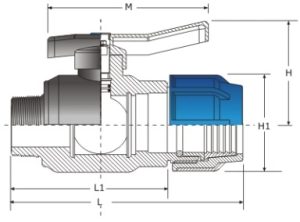

Prodct Code Size (mm x inch) L (mm) L1 (mm) M (mm) H (mm) H1 (mm)
350736 20 x 1/2 126.5 84.5 85 51.5 48
350737 25 x 3/4 142 94 108 58 54
350738 32 x 1 158 104.5 108 70 63
350739 40 x 1 1/4 175 111.5 108 75 77
350740 50 x 1 1/2 202 135 150 101 91
350741 63 x 2 229 147 150 106 106



Useful Info:

These Ball Valves are designed to be used with our MDPE pipe and are designed to regulate flow through a pipe system.

To maintain a rigid and reliable joint connection, it is highly advised that pipe liners are also used.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
MDPE Ball Valve Compression x Male Thread 20mm x 1/2"
Code
350736
Product Name
MDPE Ball Valve Compression x Male Thread 20mm x 1/2"
List Price
£20.30
You Pay
£8.12
You Save
60%
Qty
MDPE Ball Valve Compression x Male Thread 25mm x 3/4"
Code
350737
Product Name
MDPE Ball Valve Compression x Male Thread 25mm x 3/4"
List Price
£23.90
You Pay
£9.56
You Save
60%
Qty
MDPE Ball Valve Compression x Male Thread 32mm x 1"
Code
350738
Product Name
MDPE Ball Valve Compression x Male Thread 32mm x 1"
List Price
£32.92
You Pay
£13.17
You Save
60%
Qty
MDPE Ball Valve Compression x Male Thread 40mm x 1 1/4"
Code
350739
Product Name
MDPE Ball Valve Compression x Male Thread 40mm x 1 1/4"
List Price
£51.87
You Pay
£20.75
You Save
60%
Qty
MDPE Ball Valve Compression x Male Thread 50mm x 1 1/2"
Code
350740
Product Name
MDPE Ball Valve Compression x Male Thread 50mm x 1 1/2"
List Price
£67.65
You Pay
£27.06
You Save
60%
Qty
MDPE Ball Valve Compression x Male Thread 63mm x 2"
Code
350741
Product Name
MDPE Ball Valve Compression x Male Thread 63mm x 2"
List Price
£104.63
You Pay
£41.85
You Save
60%
Qty
6 products
