Available Sizes: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Pressure Rating: 16 bar
Manufacturer: Plastica Alfa
Application: Flow regulation in MDPE systems with threaded connections
Installation: Quick and simple; use pipe liners for best results
Description

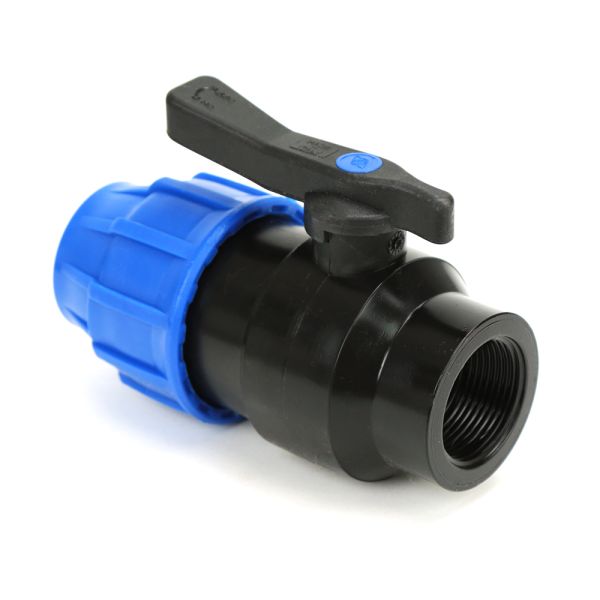

These MDPE ball valves with female BSP thread and compression fitting are designed for effective flow control in MDPE pipe systems. Manufactured by Plastica Alfa, they combine a compression end for MDPE pipe connection with a female threaded outlet, allowing versatile integration with threaded fittings or accessories. Made from durable polypropylene and fitted with NBR O-rings for leak-resistant sealing, these valves are pressure rated to 16 bar and available in sizes from 20mm to 63mm. For a secure and stable connection, the use of pipe liners is strongly recommended.
Key Features
Dual Connection: Compression end for MDPE pipe and female BSP thread for versatile system integration.
Durable Construction: Polypropylene body offers chemical and impact resistance.
Leak Protection: NBR O-rings ensure secure sealing under pressure.
High Pressure Capability: Rated to 16 bar for reliable performance in water supply systems.
Range of Sizes: Available in 20mm to 63mm to suit a variety of installations.
Trusted Manufacturer: Produced by Plastica Alfa, known for quality fittings.
Pipe Liners Recommended: Ensures maximum joint stability and performance.
Prodct Code
Supplier Code

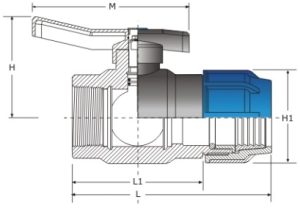

Size (mm x inch)
L (mm)
L1 (mm)
M (mm)
H (mm)
H1 (mm)
350730
18VCBF-2-B
20 x 1/2
110
68.5
85
51.5
48
350731
18VCBF-3-C
25 x 3/4
125
78
108
58
54
350732
18VCBF-4-D
32 x 1
148
92.5
108
70
63
350733
18VCBF-6-E
40 x 1 1/4
165
101
108
75
77
350734
18VCBF-7-F
50 x 1 1/2
184
117
150
101
91
350735
18VCBF-8-G
63 x 2
218
136
150
106
106
