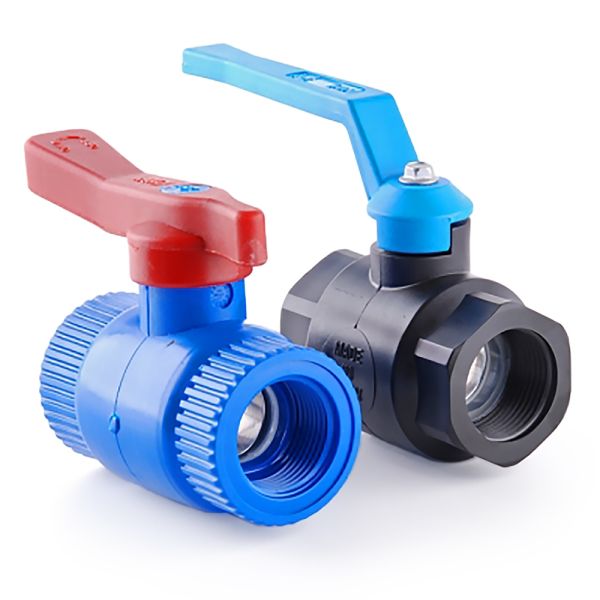

Ice Valve Threaded

Ice Valve Threaded

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Materials: polypropylene copolymer (body), nylon PA6 (handle), brass (ball)
  • Frost and ice resistant
  • Pressure rated to 16 bar
  • Operating temperature range: -20°C to 75°C
  • Female BSP threads
  • Black PP available up to 1"

MDPE - Ice Valve - 2

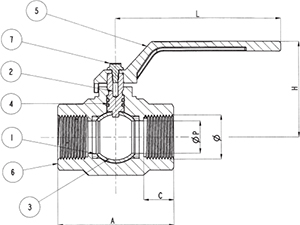

Product Code G A (mm) C (mm) P (mm) HL (mm) L (mm)
359212 1/2" 61 15.5 15 55 102
359213 3/4" 72 17.5 20 59 102
359214 1" 84 20.5 25 73 120



MDPE - Ice Valve

Product Code Thread Size (Inch) A (mm) H (mm) L (mm)
350745 1 1/4 100.5 75 75
350746 1 1/2 116 101 101
350747 2 134.5 106 106



Useful Info:

These polypropylene ball valves are ideal for use in water and irrigation applications in the most extreme climatic conditions.

The design of these ice resistant valves maintains high performance in the most severe of temperature ranges and overcomes the freezing of fluids inside the valve, and the consequent increase in volume. These valves are also able to totally resist being submitted to freezing and defrosting cycles.

These valves are manufactured with a single body from a special compound which guarantees duration and versatility under conditions that would damage other plastic valves.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
