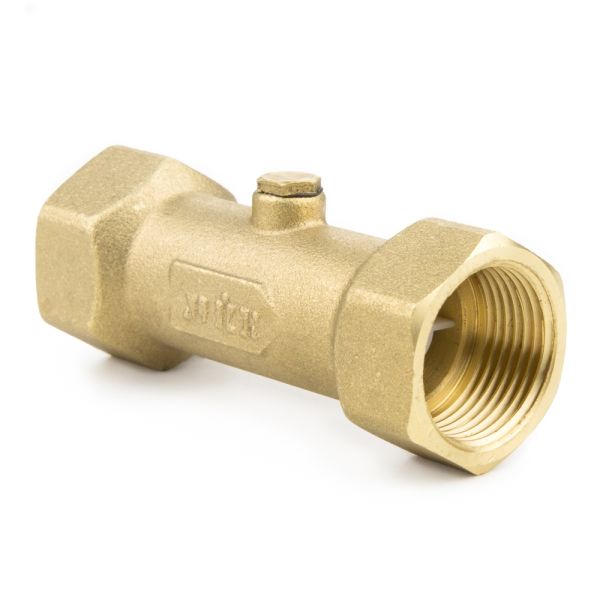

Double Check Valve Brass Threaded

Double Check Valve Brass Threaded

Click on the image to activate zoom.

Approvals:

WRAS Approved Product - sold by Pipestock



Key Features / Tech Specs & Dimensions:

  • Material: DZR brass
  • WRAS approved (licence number 1709141 (1807372 for 1 1/4"))
  • BSPP female threads
  • Rated to 16 bar
  • Operating temperature: -10 to 85°C
  • Conforms to EN 13959

DZR Double Check Valve Brass Diagram

Product Code DN (inch)
A (mm) B (mm) Weight (kg)
392095 1/2 71 17.5 0.11
392096 3/4 83 20 0.17
392097 1 98 22.8 0.28
392098 1 1/4 118 26 0.45
392099 1 1/2 134 30 0.64
392100 2 173 35 1.19



No. Description Material
1 Body DZR brass
2 Non-return core Acetal
3 Screw Brass
4 O-ring Nitrile rubber (NBR)
5 Catch spring Stainless steel 304



Useful Info:

This DZR brass double check valve is designed to prevent contamination as it will only allow fluid to flow in one direction.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DZR Brass Double Check Valve Threaded BSPP 1/2"
Code
392095
Product Name
DZR Brass Double Check Valve Threaded BSPP 1/2"
List Price
£15.59
You Pay
£7.80
You Save
50%
Qty
DZR Brass Double Check Valve Threaded BSPP 3/4"
Code
392096
Product Name
DZR Brass Double Check Valve Threaded BSPP 3/4"
List Price
£32.14
You Pay
£16.07
You Save
50%
Qty
DZR Brass Double Check Valve Threaded BSPP 1"
Code
392097
Product Name
DZR Brass Double Check Valve Threaded BSPP 1"
List Price
£56.73
You Pay
£28.37
You Save
50%
Qty
DZR Brass Double Check Valve Threaded BSPP 1 1/4"
Code
392098
Product Name
DZR Brass Double Check Valve Threaded BSPP 1 1/4"
List Price
£95.30
You Pay
£47.65
You Save
50%
Qty
DZR Brass Double Check Valve Threaded BSPP 1 1/2"
Code
392099
Product Name
DZR Brass Double Check Valve Threaded BSPP 1 1/2"
List Price
£138.70
You Pay
£69.35
You Save
50%
Qty
DZR Brass Double Check Valve Threaded BSPP 2"
Code
392100
Product Name
DZR Brass Double Check Valve Threaded BSPP 2"
List Price
£179.52
You Pay
£89.76
You Save
50%
Qty
6 products
