Butterfly Ice Ball Valve Threaded

Loading...
Useful Information

Technical Specification

  • Body Material: Polypropylene copolymer
  • Ball Material: Brass
  • Handle Material: Nylon PA6 (butterfly style)
  • Connection Type: BSP female threaded
  • Pressure Rating: 16 bar
  • Operating Temperature: -20°C to 75°C
  • Application: Water and irrigation systems in extreme climates
  • Limitations: Not suitable for gas applications

Description

This butterfly ice ball valve is specifically engineered for water and irrigation systems operating in extreme climatic conditions. Constructed from a special polypropylene copolymer, it offers complete resistance to frost, ice, and repeated freeze-thaw cycles. The single-body design eliminates leak-through, while the brass ball and nylon PA6 butterfly handle ensure smooth, reliable shut-off control. Rated to 16 bar and suitable for operation between -20°C and 75°C, this valve delivers long-term durability and performance even in the harshest environments.

Key Features & Benefits

  • Frost and Ice Resistant: Fully resistant to freezing and thawing cycles, maintaining reliable operation.
  • Single-Body Construction: Prevents leak-through and provides superior mechanical strength.
  • Durable Materials: Polypropylene copolymer body, brass ball, and PA6 butterfly handle for longevity.
  • High Pressure Rating: 16 bar rated for secure operation in pressurised water systems.
  • Wide Temperature Range: Operates from -20°C to 75°C, suitable for severe climate conditions.
  • UV and Weather Resistant: Ideal for outdoor irrigation and water conveyance applications.
  • BSP Female Threads: Compatible with standard pipework for straightforward installation.

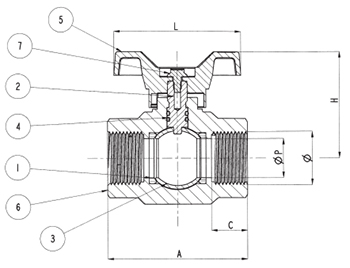

SKU Product Code Thread Size (") P (mm) A (mm) C (mm) L (mm) H (mm)
406949 F2280N015.499 1/2 15 61 15.5 79 52
406950 F2280N020.499 3/4 20 71.5 17.5 79 59
406951 F2280N025.499 1 25 83 20 82 68



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
Code Product Name List Price You Save You Pay Quantity
406949 BLK PP Butterfly Ice Ball Valve Threaded 1/2" £22.77 50%
You Pay:  £11.39
406950 BLK PP Butterfly Ice Ball Valve Threaded 3/4" £26.07 50%
You Pay:  £13.04
406951 BLK PP Butterfly Ice Ball Valve Threaded 1" £37.85 50%
You Pay:  £18.92
