Application: Water conveyance, irrigation, outdoor piping systems
Limitations: Not suitable for gas applications
Description
This butterfly ball valve is designed for efficient shut-off control in water conveyance and irrigation systems. Featuring a polypropylene single-body design, it offers excellent mechanical resistance and ensures leak-free performance. The internal brass ball provides smooth, reliable operation, while the nylon PA6 butterfly handle allows for easy manual control. Pressure rated to 16 bar and suitable for temperatures between 0°C and 75°C, this valve is UV-resistant and engineered to withstand outdoor and exposed environments. Not suitable for use with gases.
Key Features & Benefits
Single-Body Design: Eliminates leak-through and ensures long-term reliability.
Durable Materials: Polypropylene body, brass ball, and PA6 nylon handle for robust operation.
High Pressure Rated: 16 bar capacity for pressurised water systems.
Wide Temperature Range: Operates between 0°C and 75°C.
BSP Female Threads: Compatible with standard threaded pipe systems.
UV and Weather Resistant: Ideal for outdoor and irrigation use.
Compact Butterfly Handle: Provides smooth and easy manual operation.
Not for Gas Use: Suitable exclusively for liquid conveyance.

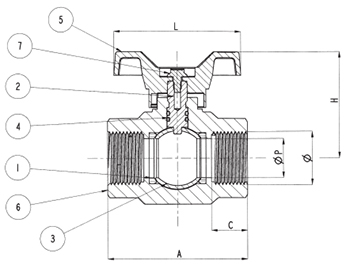

SKU
Product Code
Thread Size (")
P (mm)
A (mm)
C (mm)
L (mm)
H (mm)
406943
F2200L015.246
1/2
15
61
15.5
79
52
406944
F2200L020.246
3/4
20
71.5
17.5
79
59
406945
F2200L025.246
1
25
83
20
82
68
406946
F2200L032.246
1 1/4
32
98
23
82
74
