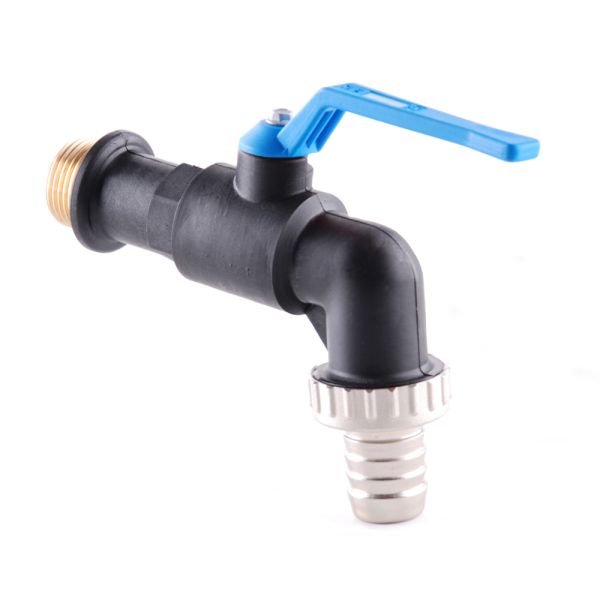

Ice Resistant Bib Tap

Ice Resistant Bib Tap

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Ice damage resistant
  • Tested to -23°C
  • Available from 1/2" to 1"
albion-ballvalve-art54-diagram Position Component Qty Material
1 Seat 2 PTFE
2 Stem 1 Brass
3 Ball 1 Brass (Chromium Plated)
4 O-Ring 2 NBR
5 Handle 1 Nylon
6 Body 1 PP Copolymer
7 Screw 1 Steel (Dacromet Plated)



Product Code ø (inch) øP (mm) A (mm) C (mm) L (mm) H (mm) Weight (kg)
359219 1/2 15 61 15.5 100 55 0.095
359220 3/4 20 71.5 17.5 100 59 0.15
359221 1 25 83 20 120 70 0.3



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

This polypropylene bib tap eliminates the need to replace taps which have been damaged by ice and freezing conditions. The innovative body has an elastic quality to absorb the increase in volume created by water freezing. As the temperature rises above 0°C, the body will return back to its original size.

To ensure product quality, this tap has been rigorously tested. Testing involves the valve being closed with water inside, and a series of freezing cycles, down to -23°C and back up to 23°C, are carried out. The seal is then tested under pressure to ensure correct operation.

This tap is not suitable for gases (group 1 & 2) and liquids (group 1 - according to Dir. 2014/68/UE).



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
BLK PP Ice Bib Tap 1/2"
Code
359219
Product Name
BLK PP Ice Bib Tap 1/2"
List Price
£17.25
You Pay
£8.63
You Save
50%
Qty
BLK PP Ice Bib Tap 3/4"
Code
359220
Product Name
BLK PP Ice Bib Tap 3/4"
List Price
£26.20
You Pay
£13.10
You Save
50%
Qty
BLK PP Ice Bib Tap 1"
Code
359221
Product Name
BLK PP Ice Bib Tap 1"
List Price
£38.11
You Pay
£19.06
You Save
50%
Qty
3 products
