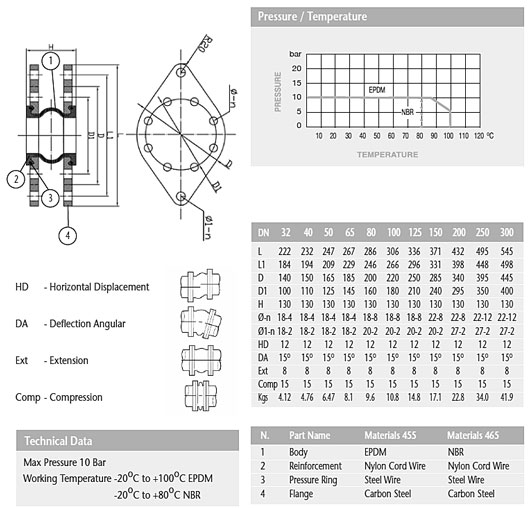

EPDM PN10 Flanged/Tied

• Body Material: EPDM
• Flange Material: Carbon Steel
• Flange Rating: PN10
• Pressure Rating: 10 bar
• Operating Temperature: -20°C to 100°C
• Application: Pipework movement control, vibration absorption, industrial systems

This EPDM PN10 tied flanged flexible connector is designed to absorb vibration and minor thermal expansion while restricting axial movement to protect pipework and connected equipment. The EPDM body offers excellent chemical, weather, and temperature resistance, while the carbon steel PN10 flanges provide strong and secure connections. The integrated tie rods limit excessive movement, ensuring stable operation even under fluctuating pressure conditions. Rated to 10 bar and suitable for temperatures between -20°C and 100°C, this connector is ideal for a wide range of industrial, commercial, and HVAC applications.

• Tied Design: Integral tie rods restrict axial movement, enhancing joint stability.
• Flexible Connector: Absorbs vibration, noise, and minor expansion/contraction.
• EPDM Body: Excellent resistance to weathering, chemicals, and temperature variations.
• Carbon Steel Flanges: PN10 rated for secure, long-lasting flange connections.
• Pressure Rated: Operates safely up to 10 bar.
• Wide Temperature Range: Reliable performance from -20°C to 100°C.
• Versatile Applications: Suitable for HVAC, water treatment, process, and industrial systems.
