Certification: BS EN 10204 certification available
Description
This screwed flange (SF) is 316L stainless steel, designed with a Type 13 raised face. It features a BSPT (ISO 7/1 Rc) threaded connection to mate easily with corresponding threaded pipe fittings. It conforms to standard flange dimensions (EN 1092‑1) but with a threaded joint, rather than a weld or socket connection.

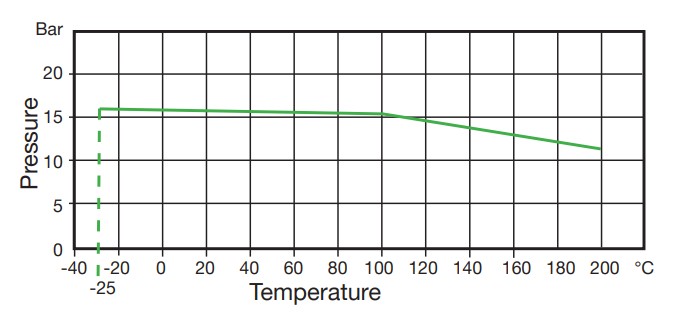

It is specified for applications up to 16 bar pressure and used across a temperature range from –25 °C to +200 °C. The product is available in sizes from ½″ to 6″, and comes with the option of BS EN 10204 test certification on request.
Key Features & Benefits
Corrosion resistance & durability: Manufactured in 316L stainless steel, offering excellent resistance to a wide range of chemical and environmental conditions
Threaded connection (BSPT): Allows easy installation and removal without welding, ideal for retrofit, maintenance, or tight spaces
Standard compliance: Flange face dimensions and drilling conform to EN 1092‑1; pressure and material test certification (BS EN 10204) is optionally available
Robust performance: Rated to 16 bar and usable from -25 °C to +200 °C
Availability & range: Stocked in the UK in a full size range (½″ to 6″)
SKU
Size (inch)
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G (mm)
n-D
Bolts
Weight (kg)
490245
1/2
45
65
95
35
2
16
22
4-14
4 x M12
0.72
490246
3/4
58
75
105
45
4
18
26
4-14
4 x M12
1.04
490247
1
68
85
115
52
2
18
28
4-14
4 x M12
1.25
490248
1 1/4
78
100
140
60
2
18
30
4-18
4 x M16
1.81
490249
1 1/2
88
110
150
70
3
18
32
4-18
4 x M16
2.03
490250
2
102
125
165
84
3
18
28
4-18
4 x M16
2.39
490251
2 1/2
122
145
185
104
3
18
32
4-18
4 x M16
2.97
490252
3
138
160
200
118
3
20
34
8-18
8 x M16
3.78
490253
4
158
180
220
140
3
20
40
8-18
8 x M16
4.38
490254
5
188
210
250
168
3
22
44
8-18
8 x M16
6.07
490255
6
212
240
285
195
3
22
44
8-22
8 x M20
7.24
