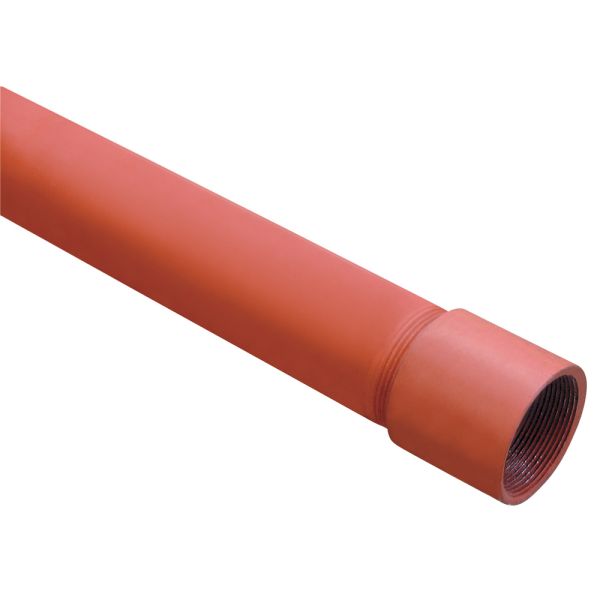

Red Oxide Primed Medium Grade

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: steel (red oxide primed)
  • Maximum operating pressure: 50 bar
  • Conform to EN 10255, EN 10217-1, BS1387 standards
  • Male BSP threads
  • Supplied with threaded socket
Product Code Nominal Bore (inch) Nominal Bore (mm) Max. OD (mm) Min. OD (mm) Wall Thickness (mm) Weight per Metre (kg) Length (m)
363766 ½ 15 21.8 21 2.6 1.22 3.2
363784 ½ 15 21.8 21 2.6 1.22 6.4
363767 ¾ 20 27.3 26.5 2.6 1.57 3.2
363785 ¾ 20 27.3 26.5 2.6 1.57 6.4
363768 1 25 34.2 33.3 3.2 2.43 3.2
363786 1 25 34.2 33.3 3.2 2.43 6.4
363769 32 42.9 42 3.2 3.13 3.2
363787 32 42.9 42 3.2 3.13 6.4
363770 40 48.8 47.9 3.2 3.6 3.2
363788 40 48.8 47.9 3.2 3.6 6.4
363771 2 50 60.8 59.7 3.6 5.1 3.2
363789 2 50 60.8 59.7 3.6 5.1 6.4
363772 65 76.6 75.3 3.6 6.54 3.2
363790 65 76.6 75.3 3.6 6.54 6.4
363773 3 80 89.5 88 4 8.53 3.2
363791 3 80 89.5 88 4 8.53 6.4
363774 4 100 115 113.1 4.5 12.5 3.2
363792 4 100 115 113.1 4.5 12.5 6.4



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363766Steel Tube Red Oxide Primed Medium Grade 3.2m x 1/2" £50.65 60% £20.26
363784Steel Tube Red Oxide Primed Medium Grade 6.4m x 1/2" £114.60 50% £57.30
363767Steel Tube Red Oxide Primed Medium Grade 3.2m x 3/4" £59.45 60% £23.78
363785Steel Tube Red Oxide Primed Medium Grade 6.4m x 3/4" £149.10 50% £74.55
363768Steel Tube Red Oxide Primed Medium Grade 3.2m x 1" £85.25 60% £34.10
363786Steel Tube Red Oxide Primed Medium Grade 6.4m x 1" £193.80 50% £96.90
363769Steel Tube Red Oxide Primed Medium Grade 3.2m x 1 1/4" £93.05 60% £37.22
363787Steel Tube Red Oxide Primed Medium Grade 6.4m x 1 1/4" £193.95 50% £96.98
363770Steel Tube Red Oxide Primed Medium Grade 3.2m x 1 1/2" £128.15 60% £51.26
363788Steel Tube Red Oxide Primed Medium Grade 6.4m x 1 1/2" £279.55 50% £139.78
363771Steel Tube Red Oxide Primed Medium Grade 3.2m x 2" £172.25 60% £68.90
363789Steel Tube Red Oxide Primed Medium Grade 6.4m x 2" £312.20 50% £156.10
363772Steel Tube Red Oxide Primed Medium Grade 3.2m x 2 1/2" £314.50 60% £125.80
363790Steel Tube Red Oxide Primed Medium Grade 6.4m x 2 1/2" £533.05 50% £266.53
363773Steel Tube Red Oxide Primed Medium Grade 3.2m x 3" £409.00 60% £163.60
363791Steel Tube Red Oxide Primed Medium Grade 6.4m x 3" £615.00 50% £307.50
363774Steel Tube Red Oxide Primed Medium Grade 3.2m x 4" £579.65 60% £231.86
363792Steel Tube Red Oxide Primed Medium Grade 6.4m x 4" £1,080.95 50% £540.48
