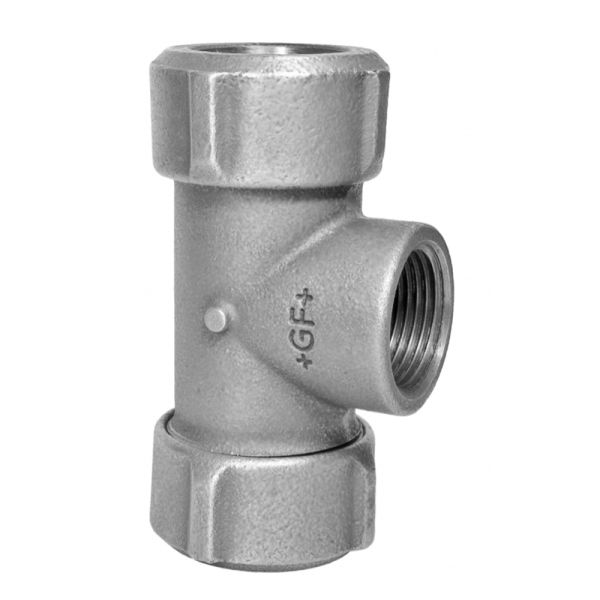

Tee 90° Branch Thread F Steel FPM
Useful Information
These PRIMOFIT compression tees have a female threaded branch and FPM gaskets for connection to ISO 65 Steel pipe and Rp/EN 1-226-1 threaded pipe.
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 10 bar - Fuel up to 16 bar - Compressed Air |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. St (inch) | Dim. RP (inch) | D (mm) | L (mm) | L1 (mm) | x (mm) | Weight (kg) |
| 399853 | 1/2 | 1/2 | 45 | 101 | 27 | 30 - 34 | 0.318 |
| 399854 | 3/4 | 3/4 | 51 | 107 | 32 | 30 - 34 | 0.429 |
| 399855 | 1 | 1 | 59 | 114 | 38 | 30 - 34 | 0.711 |
| 399856 | 1 1/4 | 1 1/4 | 68 | 121 | 45 | 30 - 36 | 0.818 |
| 399857 | 1 1/2 | 1 1/2 | 75 | 133 | 48 | 32 - 38 | 1.121 |
| 399858 | 2 | 2 | 96 | 156 | 62 | 36 - 42 | 1.519 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
