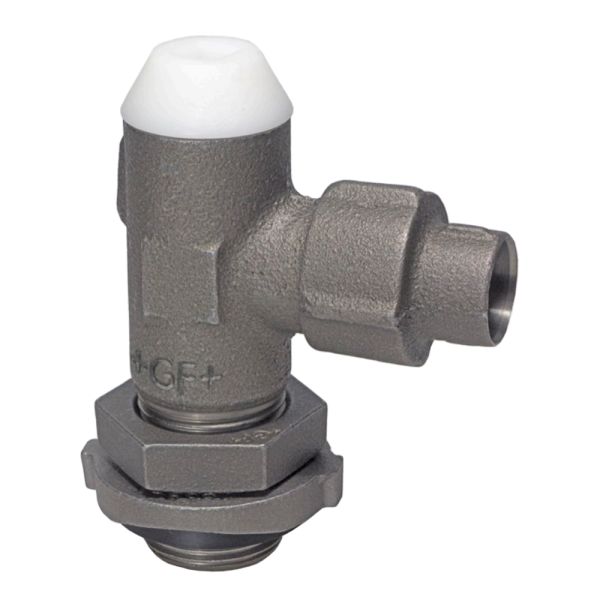

Swivel Tee 90° with Anti-Shear Nut Steel x PE
Useful Information
These PRIMOFIT Under pressure swivel tees have anti-shear nuts and are for connection to PE SDR 11/S 5.
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 8 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. PE (mm) | Dim. G (inch) | L (mm) | L1 (mm) | D (mm) | D2 (mm) | D3 (mm) | x (mm) | Weight (kg) |
| 399943 | 20 | 3/4 | 115 | 70 | 43 | 36 | 50 | 45 | 0.540 |
| 399941 | 25 | 3/4 | 115 | 40 | 49 | 36 | 50 | 56 | 0.630 |
| 399946 | 32 | 3/4 | 133 | 84 | 57 | 47 | 50 | 56 | 0.750 |
| 399944 | 20 | 1 | 115 | 70 | 43 | 36 | 60 | 45 | 0.680 |
| 399945 | 25 | 1 | 115 | 40 | 49 | 36 | 60 | 56 | 0.820 |
| 399942 | 32 | 1 | 133 | 84 | 57 | 47 | 60 | 56 | 1.110 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
