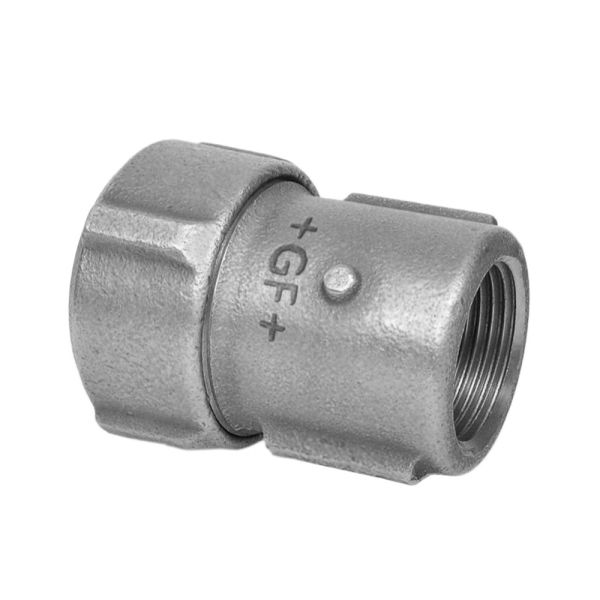

F Adaptor Steel x PE NBR
Useful Information
These PRIMOFIT compression female adaptors have NBR gaskets and are for connection to PE SDR 11/S 5 and Rp/EN 10226-1 threaded pipe.
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 8 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. PE (mm) | Dim. Rp (inch) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399755 | 20 x 2.0 | 1/2 | 45 | 58 | 31 - 33 | 0.227 |
| 399756 | 25 x 2.3 | 3/4 | 51 | 62 | 31 - 33 | 0.300 |
| 399757 | 32 x 3.0 | 1 | 59 | 68 | 31 - 33 | 0.400 |
| 399758 | 40 x 3.7 | 1 1/4 | 68 | 70 | 32 - 38 | 0.560 |
| 399759 | 50 x 4.6 | 1 1/2 | 75 | 75 | 35 - 43 | 0.700 |
| 399760 | 63 x 5.8 | 2 | 96 | 83 | 36 - 47 | 1.264 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
