Coupling Steel x Steel FPM
Useful Information

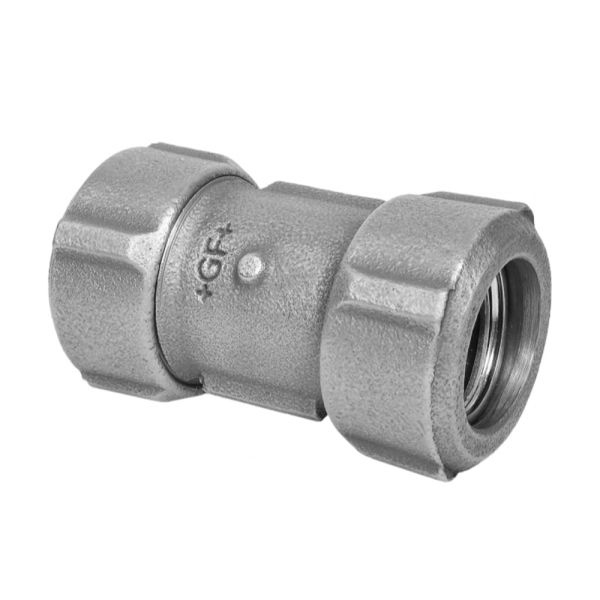

These PRIMOFIT compression couplings have FPM gaskets and are for connection to ISO 65 steel pipe.
Â
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 10 bar - Fuel up to 16 bar - Compressed Air |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. (inch) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399641 | 1/2 | 45 | 85 | 30 - 34 | 0.346 |
| 399642 | 3/4 | 51 | 90 | 30 - 34 | 0.446 |
| 399643 | 1 | 59 | 96 | 30 - 34 | 0.527 |
| 399644 | 1 1/4 | 68 | 96 | 30 - 36 | 0.700 |
| 399645 | 1 1/2 | 75 | 100 | 32 - 38 | 0.856 |
| 399646 | 2 | 96 | 112 | 36 - 42 | 1.560 |
| 399647 | 2 1/2 | 119 | 185 | 65 - 75 | 3.500 |
| 399648 | 3 | 132 | 191 | 65 - 75 | 4.332 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
